OBD2 / Pin Assignment

OBD2 End Open Cable Pin Assignment

Complete pin assignment reference for end-open OBD2 diagnostic cables — the 16 pin full cable, the 8 pin pass-through flat cable, and the standard OBD2 (J1962) connector pinout.

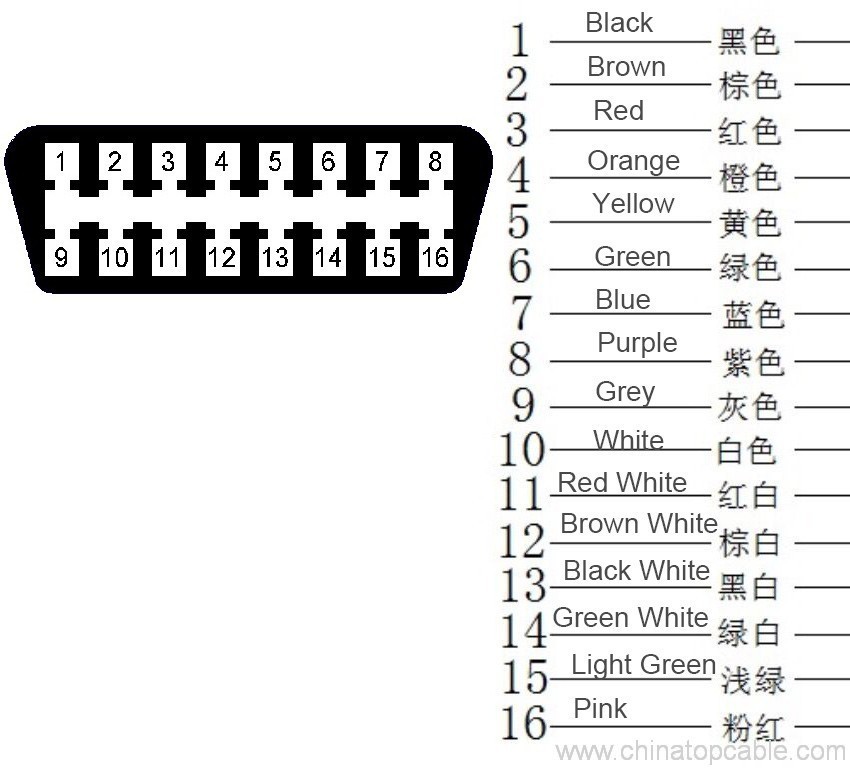

OBD2 end open 16 pin full cable pin assignment

OBD2 16 pin end open cable connector pin numbering with corresponding wire colour codes — 16 pin end-open OBD2 cable — pin numbering and corresponding wire colours.

8 pin pass through flat cable pin assignment

8 pin pass through flat cable pin to pin assignment diagram — 8 pin pass-through flat cable — pin to pin mapping.

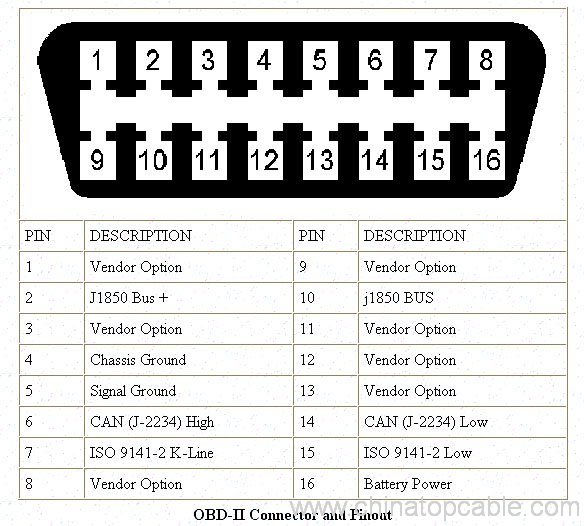

OBD2 standard pinout

Standard OBD2 J1962 connector pinout with signal names and pin numbers — Standard OBD2 (J1962) connector pinout and signal names.

If you need further assistance, contact us. For other connector types, see our special interface to OBD2 cable pinout reference. Related references: VAG KKL 409 and ELM327 software.
