3×1 HDMI Auto Switch, 3 Port Splitter Hub
$12.00 – $25.00 / pc · MOQ 500 pcs
Three-in, one-out HDMI auto switch that lets three devices share a screen, with LED source indicators, automatic selection and support for 1080p and 3D signals.
- Description

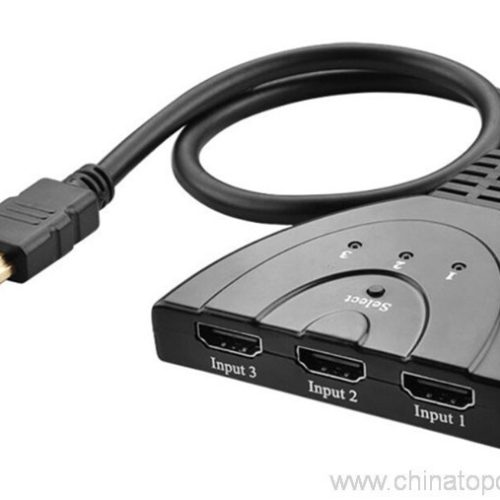

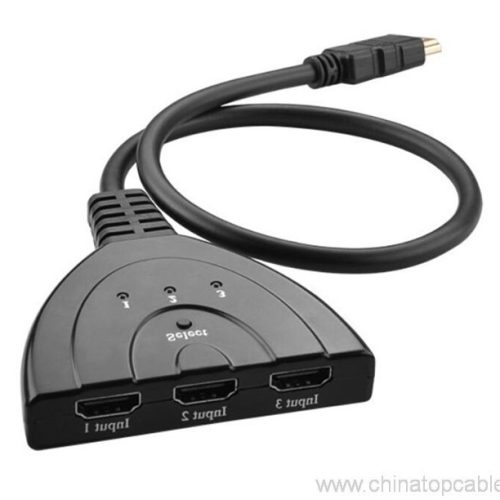

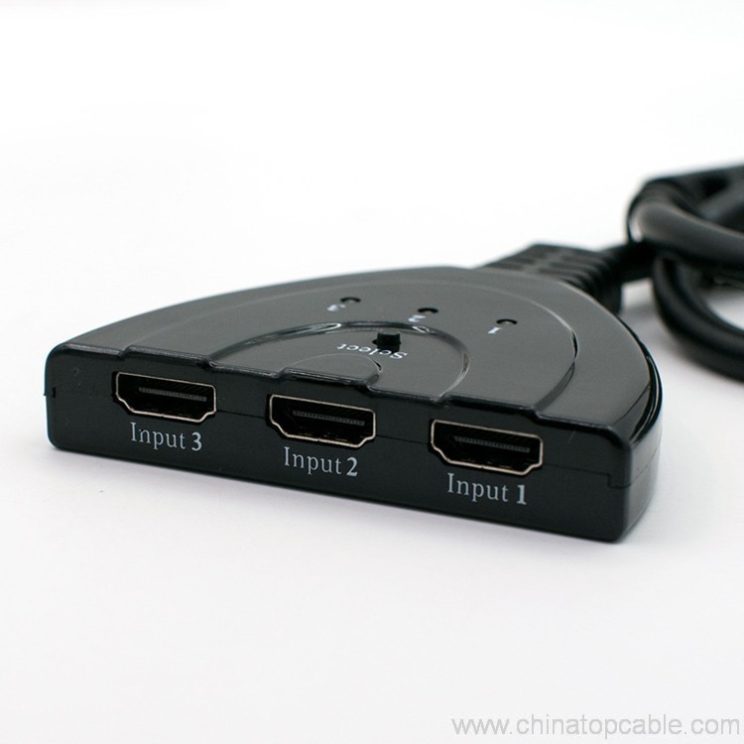

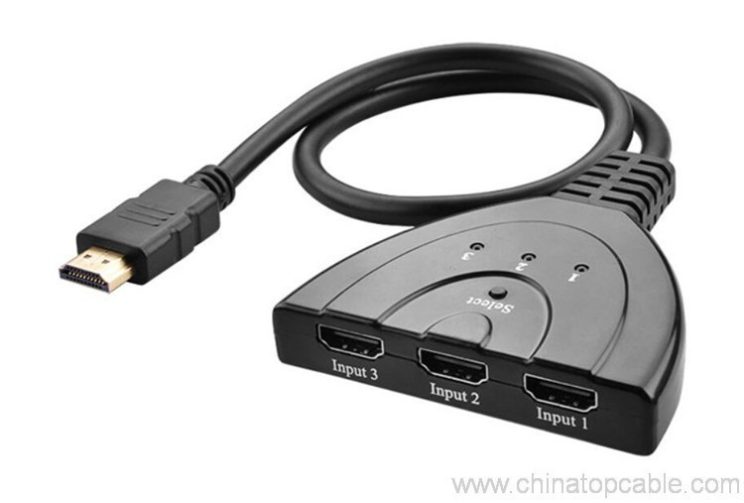

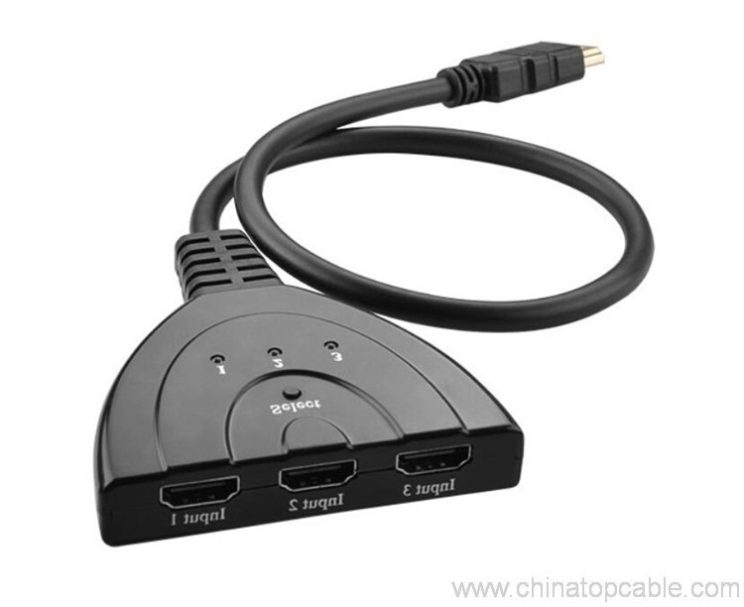

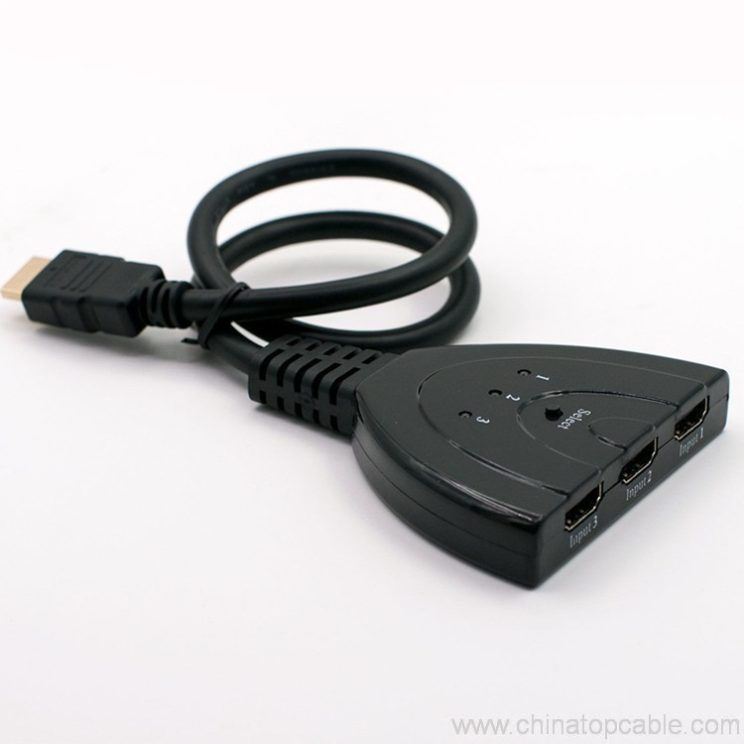

A three-in, one-out HDMI switch for sharing a single screen between three sources — a console, a set-top box and a media player, for example. It selects the active input automatically when a source is switched on or connected, and LED indicators show which port is live.
Where the five-port switch in our range suits a crowded rack, this 3×1 model suits a bedroom or meeting-room setup with three devices. It handles 1080p and 3D content, is HDCP 1.2 compliant, and supports leads up to 20 m when a 24 AWG cable is used on the run. It is not a 4K switcher — ask us if your display is 4K.
Key features
- Three HDMI inputs, one output
- Automatic and manual source selection

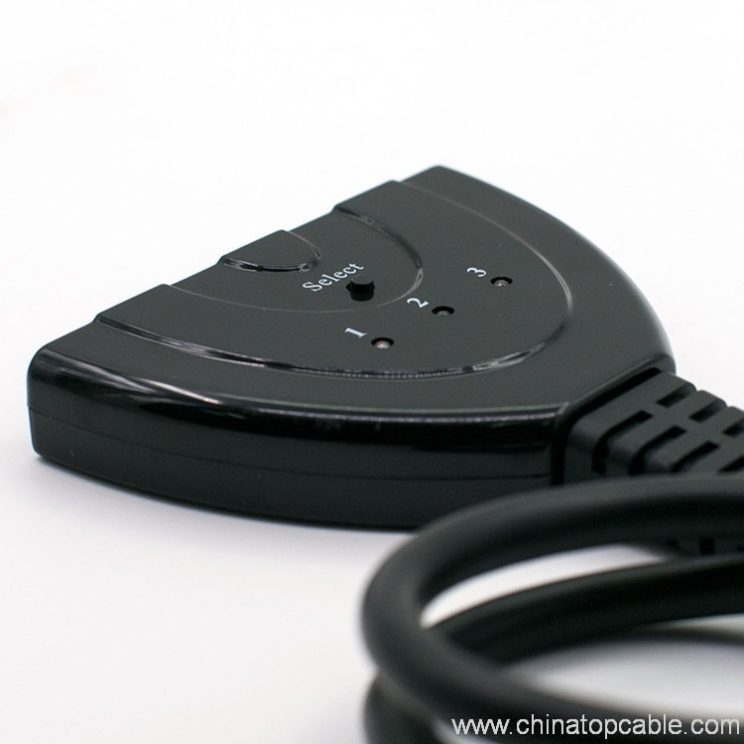

- Built-in LED source indicators
- Supports 1080p, 3D and HDCP 1.2
- Runs up to 20 m with 24 AWG cable
Specifications
| Inputs | 3 x HDMI |
| Output | 1 x HDMI |
| Resolutions | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Colour depth | 24-bit and 36-bit |
| Audio | LPCM, Dolby AC3, DTS 7.1, DSD |
| Video bandwidth | 6.75 Gbps / 225 MHz |
| Max cable run | 20 m with 24 AWG cable |
| Operating temperature | -15 to 55 °C |
| Humidity | 5 to 90%, non-condensing |
| Packing | Gift box |
Typical applications
- Console, set-top box and player on one TV
- Meeting-room projector with three laptops
- Bedroom or hotel-room entertainment systems
- Retail display switching between players
Custom and OEM options
Port count, remote style, housing finish, cable and packing are open to order. Sample lead time is 3 to 7 days and production is normally 7 to 15 days.
FAQ
Does it support 4K?
No, this model is rated to 1080p. Ask about the 4K switch if your display is 4K.
Does it need external power?
Tell us the devices you plan to connect and we will confirm the power arrangement for the model supplied.
