HDMI to RCA AV Converter, CVBS and Stereo Audio

A converter for the older television, VCR or AV receiver that only has composite inputs. The HDMI source — a media player, console, laptop or camera — goes in one end, and the box outputs composite video (CVBS) plus left and right audio on three RCA sockets, so a modern device can drive a legacy screen.

There are no drivers and no configuration: connect the HDMI lead, connect the RCA leads, power the box from the supplied USB cable, and the picture and sound are synchronised straight away at up to 1920 x 1080 at 60 Hz.

Key features

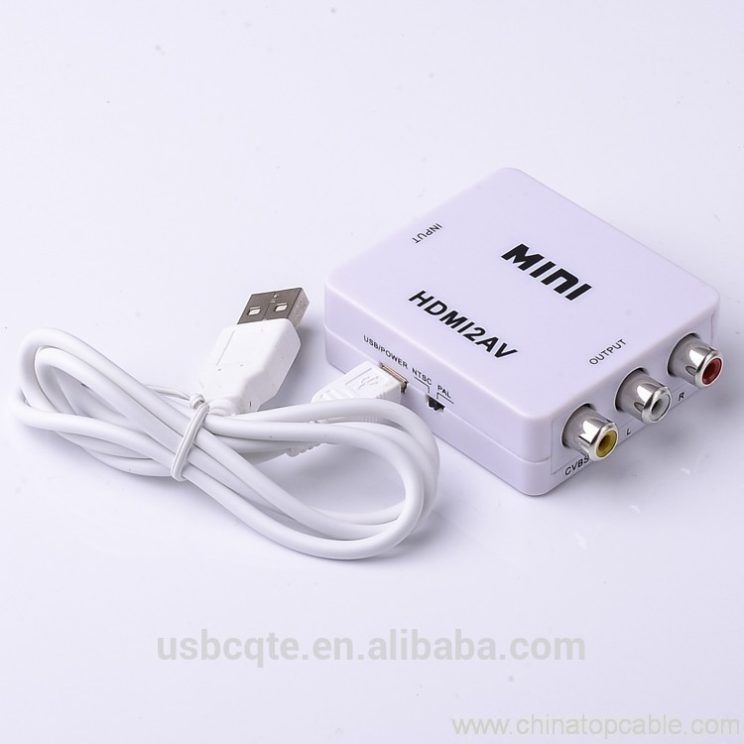

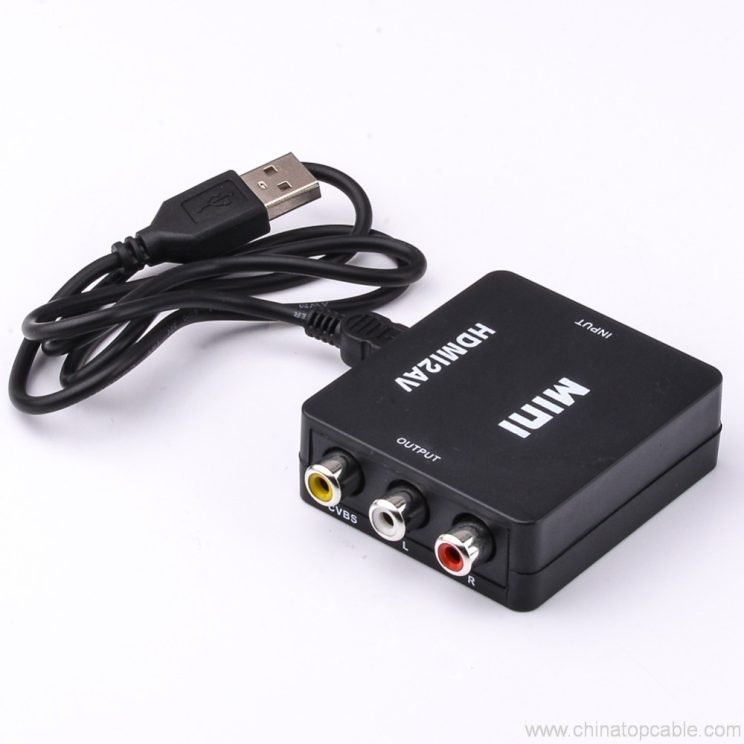

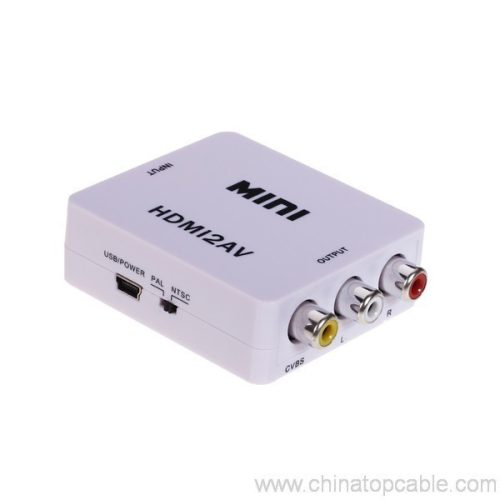

• HDMI input, 3 RCA output (CVBS + L/R audio)
• NTSC / PAL compatible
• Output resolution 720p / 1080p at 60 Hz
• Audio synchronised with video
• USB powered (5V DC); no drivers needed
• Compact ABS body, 67 x 68 x 25 mm, 86 g

Specifications

One direction note worth reading, because the factory sheet is inconsistent. The product name, this page and the output list all describe HDMI in and composite AV out; a single bullet line in the same sheet and the package list carry the wording reversed. The build we supply is the one named here — HDMI input, CVBS/L/R output — so a modern HDMI device can feed an older AV television. Confirm the direction on your order and we will ship the matching unit.

Typical applications

• Connecting an HDMI player to an older CRT or AV television
• Feeding a legacy AV receiver or VCR
• Retail and kiosk displays still using composite video

Custom and OEM options

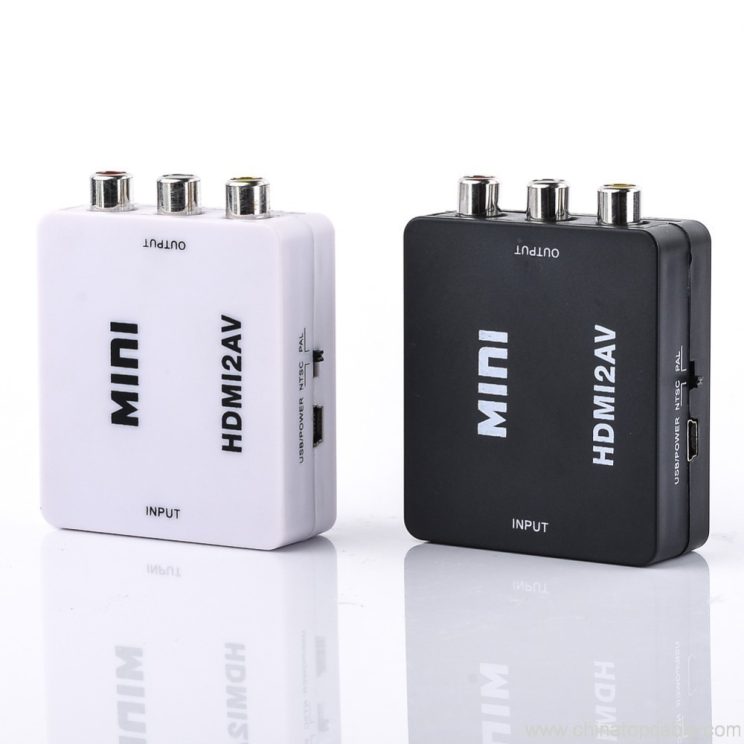

Housing colour and finish, cable length, connector plating, printed logo and retail packaging with your own artwork can all be specified. Standard items from 100 pcs, custom builds from 500 pcs, free samples, production in 20–25 working days.

Samples, packing options, payment terms and warranty conditions are set out in How to Order and Delivery Information.
