Ultra Low-Profile 90-Degree OBD2 Y Splitter, 0.3 m

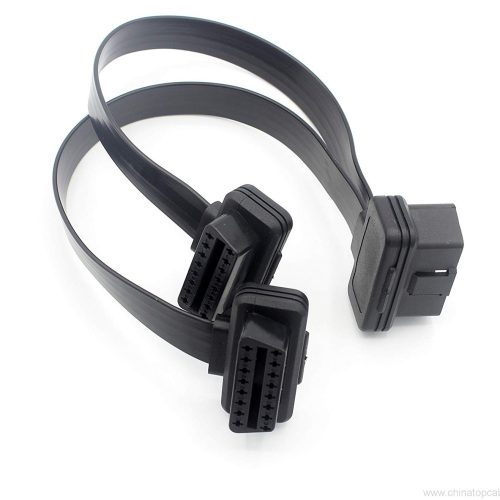

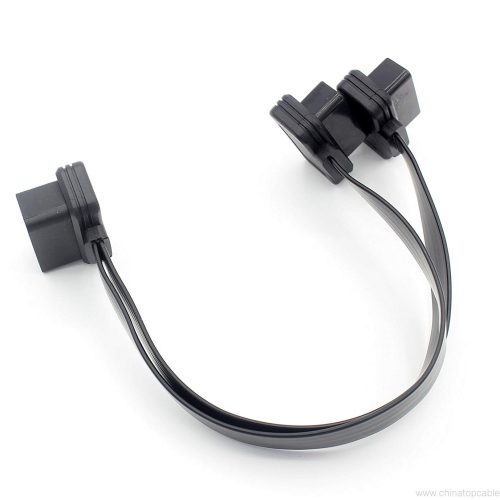

The port above the pedals has maybe four centimetres of clearance, and a standard splitter head fills it with a bulge that a boot heel finds instantly. This ultra low-profile Y splitter answers with a 90-degree angled flat noodle head: the male plug lies along the dash instead of pointing at it, and the two female branches exit flat in 0.3 m runs.

All 16 pins pass through to both branches, the working range spans -30 to +84 °C, and the connector and cable materials comply with RoHS. It is the splitter for vehicles where the port faces the seat — and the one to pair with our flat extension when the reader lives further along the cabin.

Key features

• Ultra low-profile 90-degree male head
• 1 male to 2 female, full pass-through
• Flat noodle jacket, 0.3 m
• RoHS-compliant materials
• -30 to +84 °C working range

Specifications

Typical applications

• Tight pedal-box ports with seated drivers
• Tracker plus scanner without port bulge
• Low-profile commercial cabin installs
• Retrofit programmes on flat-port vehicles

Custom and OEM options

Branch length and head angle are per-order options; the angled flat head is our tooling, so colour and branding run at modest MOQ. Sample first as standard.

FAQ

Which way does the angle point?
The head exits parallel to the dash; confirm your port orientation with a photo if the install is unusual, and we match the bend.

Is 0.3 m enough?
For branch splits at the port, yes — for runs along the cabin, add our flat extension cable after the splitter.

Samples, packing options, payment terms and warranty conditions are set out in How to Order and Delivery Information.
