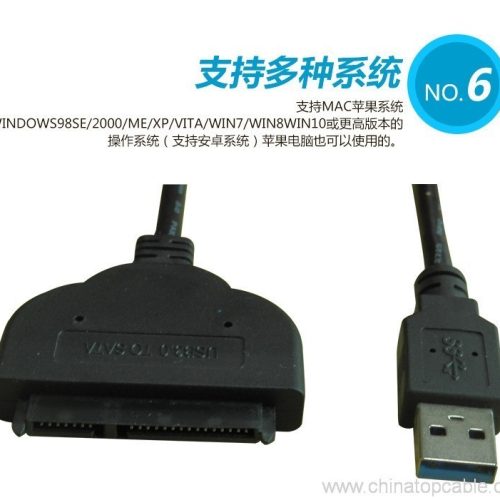

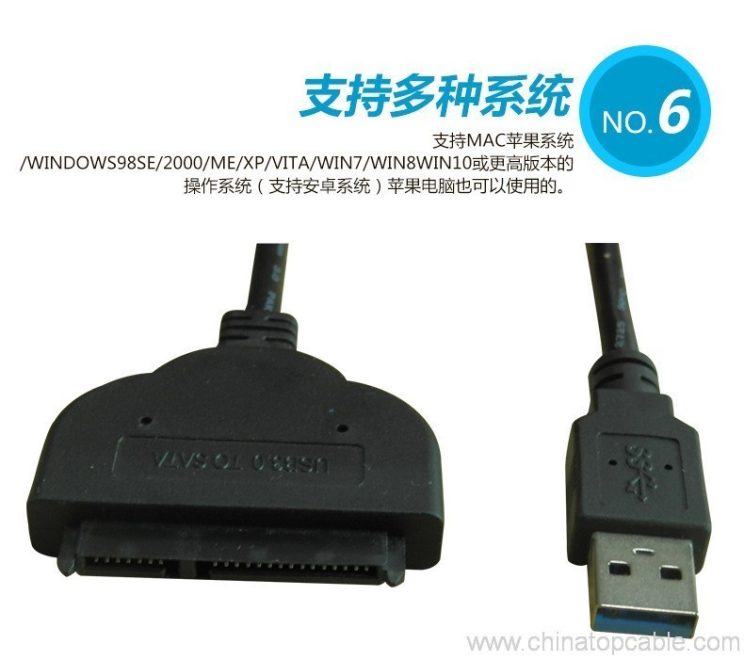

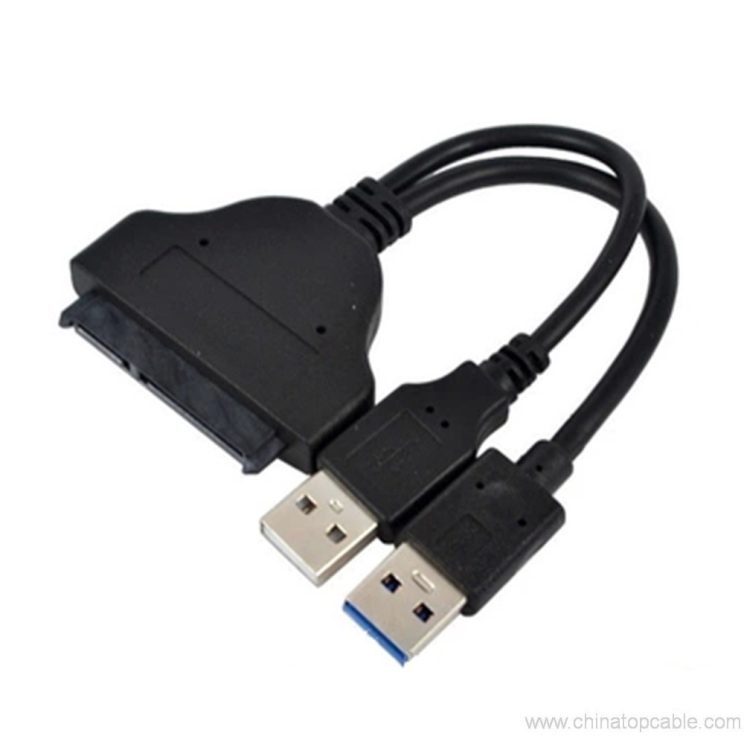

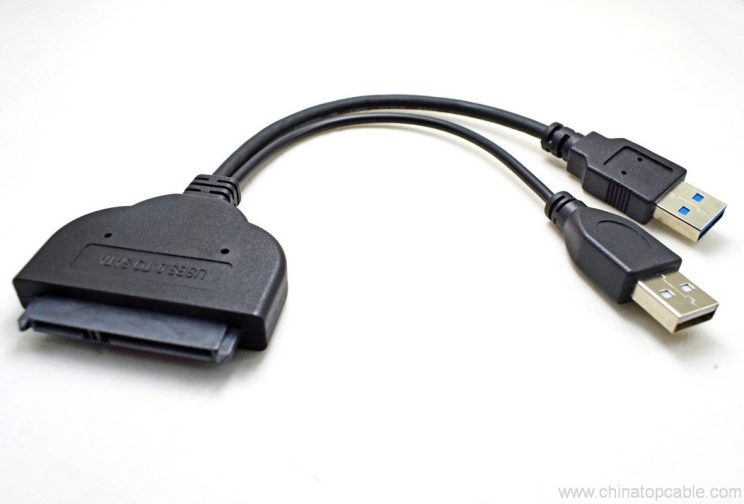

USB 3.0 to SATA 22-Pin Adapter Cable for 2.5-inch SSD/HDD

An adapter for 2.5-inch and 1.8-inch SATA drives and SSDs, built to keep a demanding disk stable. Standard single-port adapters supply only about 0.5A, so a high-draw drive can slow down or drop out; this one has a dual power interface for a total of 1.5A, which keeps transfer speeds steady on drives that need the current.

A smart chip handles the variety of 2.5-inch and SSD drives, and the one-piece moulded USB 3.0 housing is made to survive years of plugging in and out without a poor contact developing. It supports up to 2TB and USB 3.0 transfer rates to 5 Gbps.

Key features

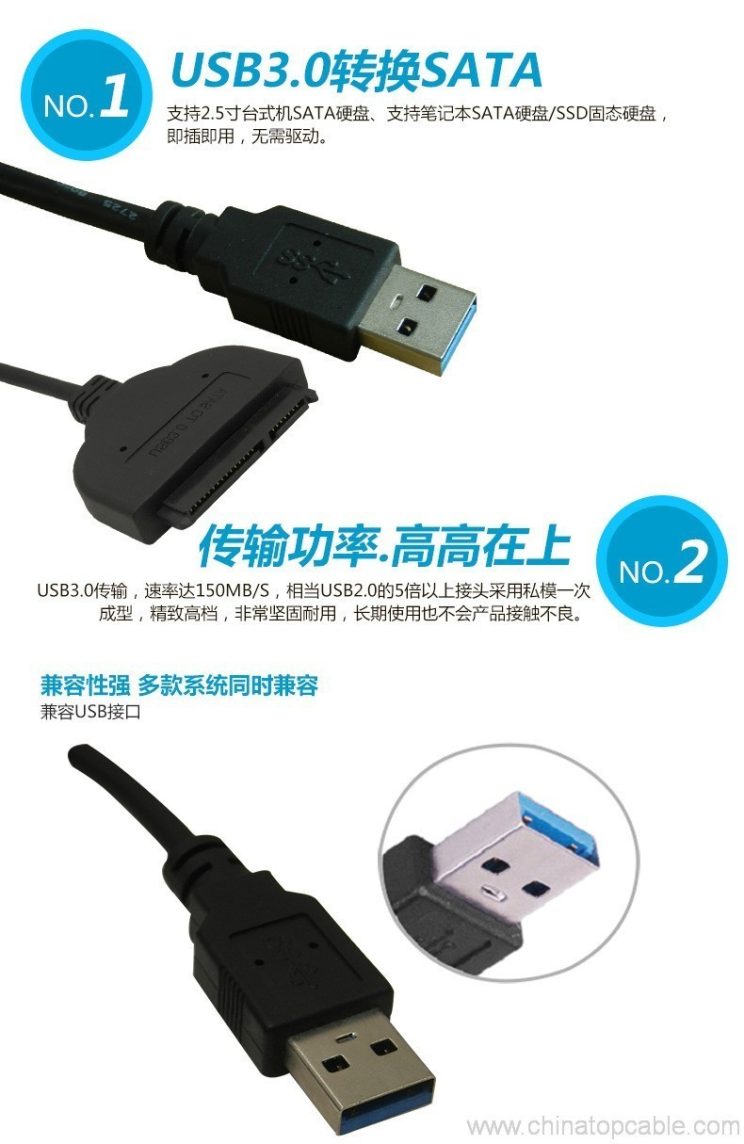

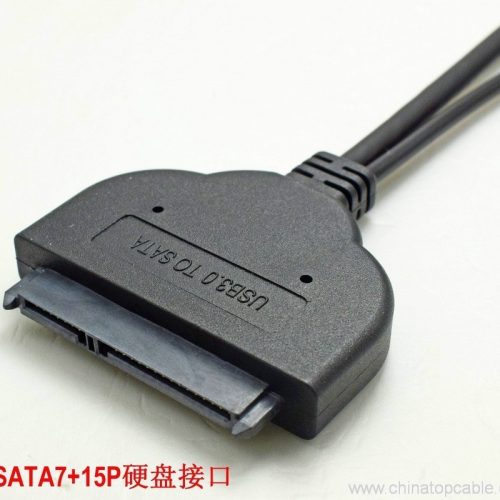

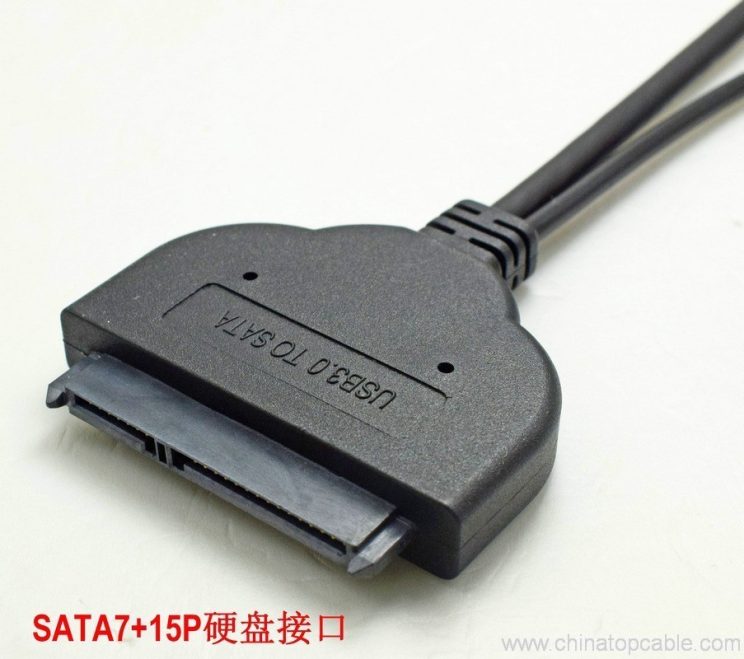

• USB 3.0 to SATA 7+15 pin (22-pin) for 2.5-inch / 1.8-inch drives

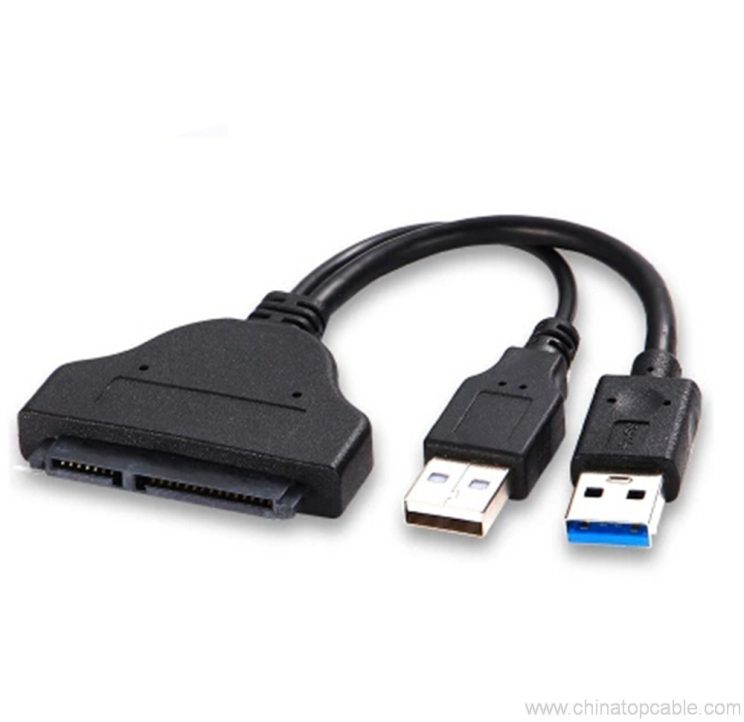

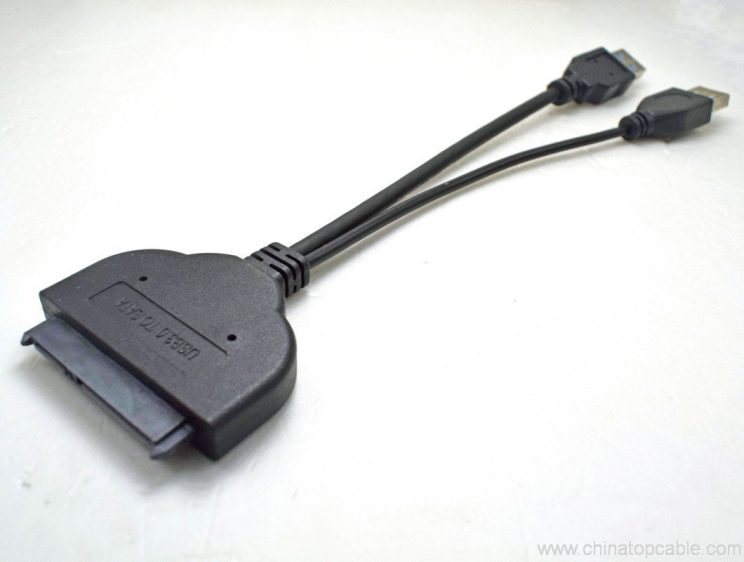

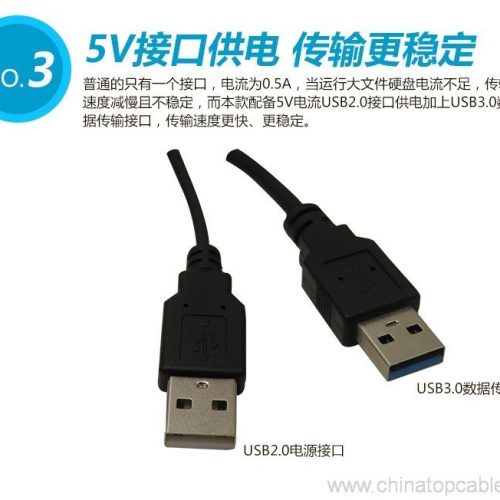

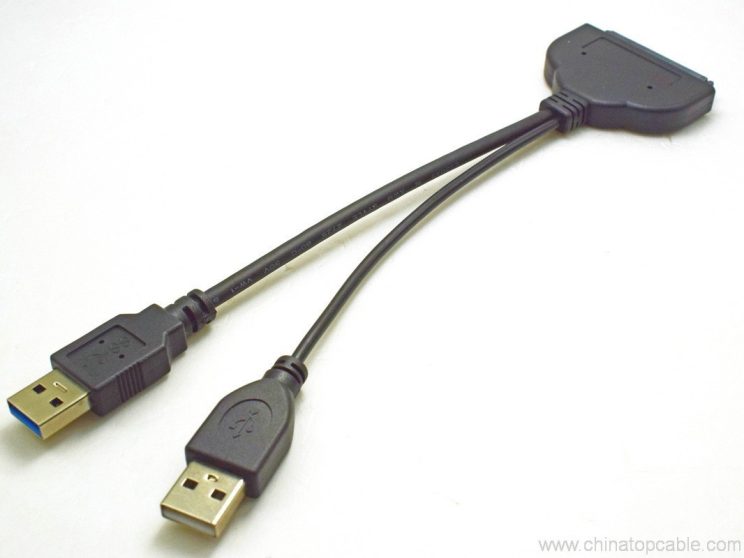

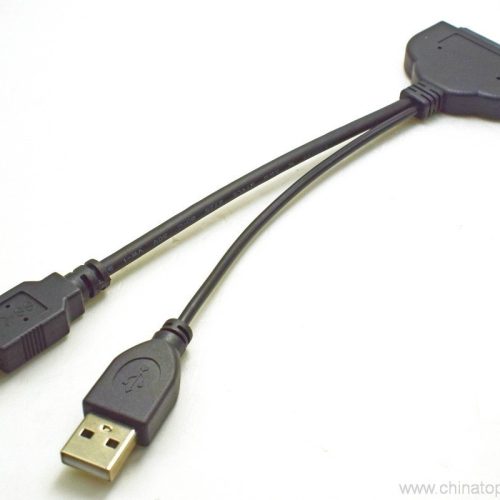

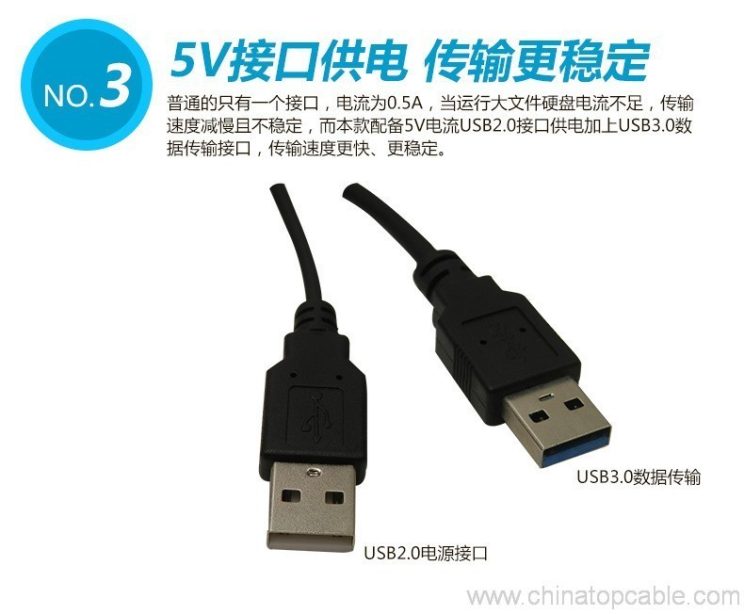

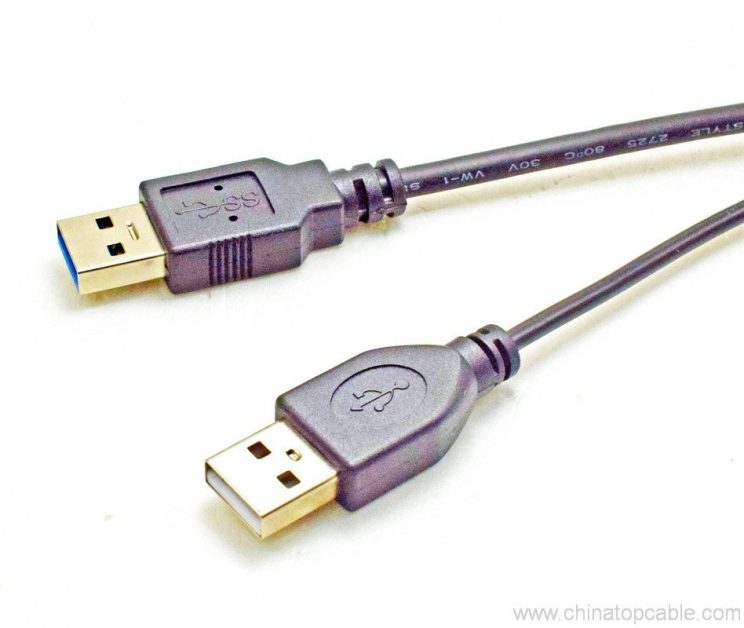

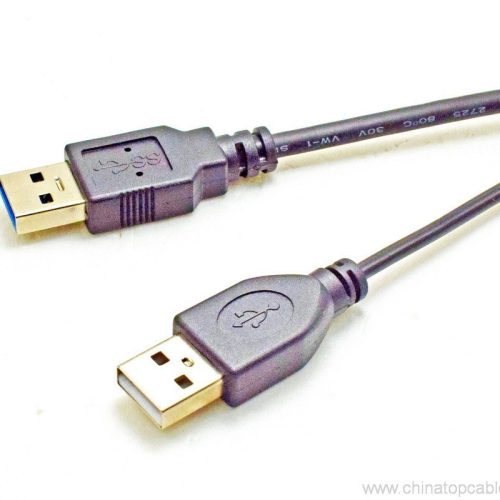

• Dual power interface, total current up to 1.5A
• Supports up to 2TB
• Up to 5 Gbps over USB 3.0

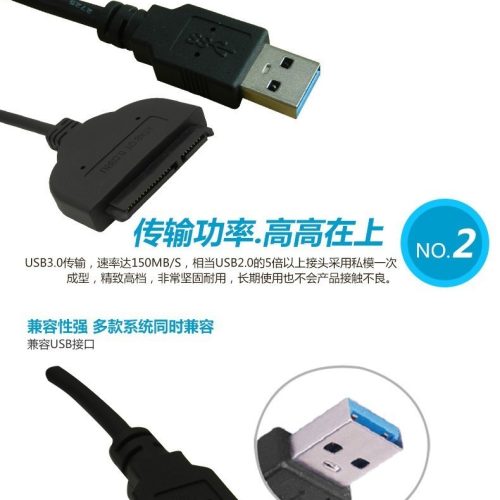

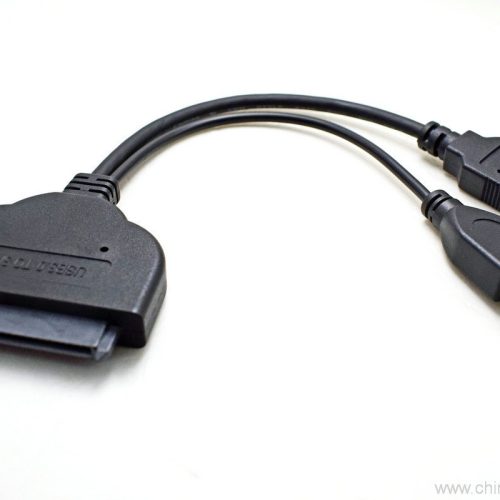

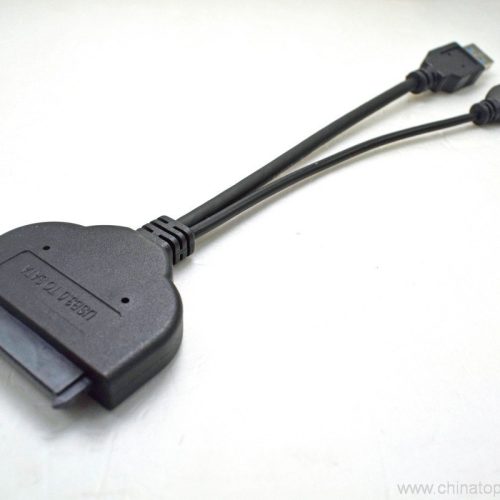

• One-piece moulded connector for long-term durability
• Plug and play; no enclosure needed

Specifications

Three notes, each one a support ticket waiting to happen. This model is for 2.5-inch and 1.8-inch drives only and does not work with 3.5-inch drives — for those, use the model with its own 12V supply. It is tested for 5V or 5V/3.3V SSDs and does not support devices that run on 3.3V alone, so confirm your drive’s power requirement. And a brand-new drive must be partitioned and formatted before use.

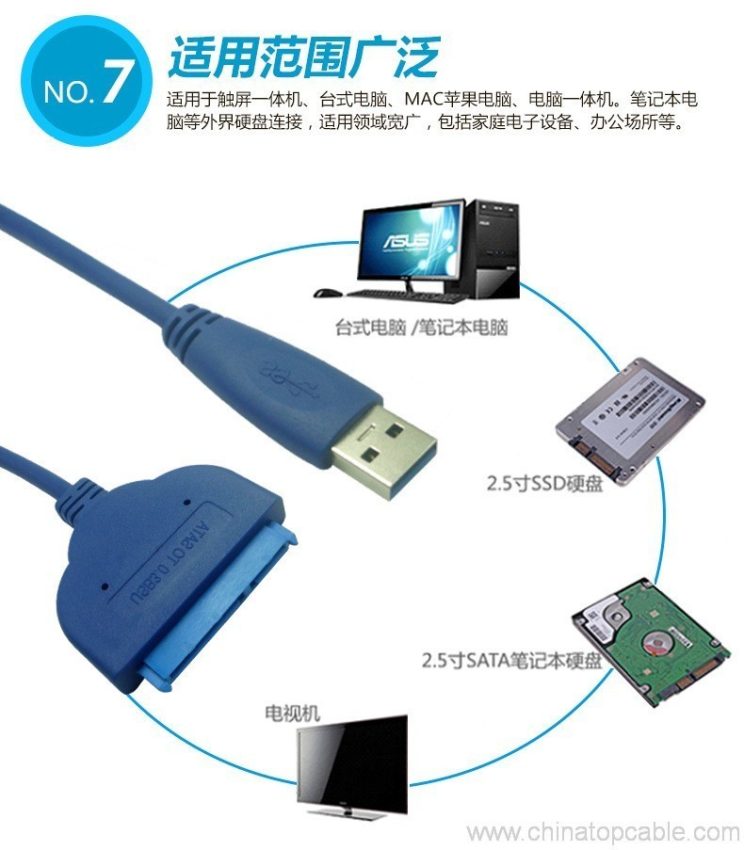

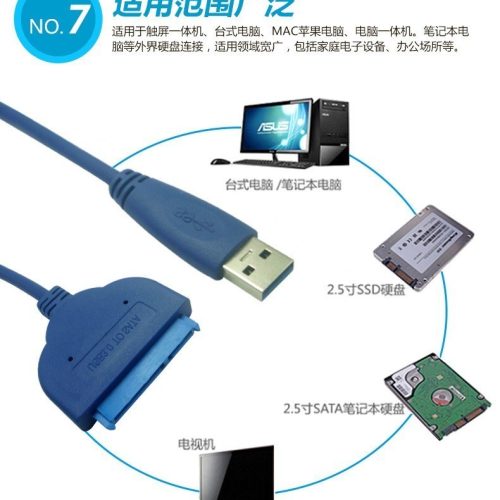

Typical applications

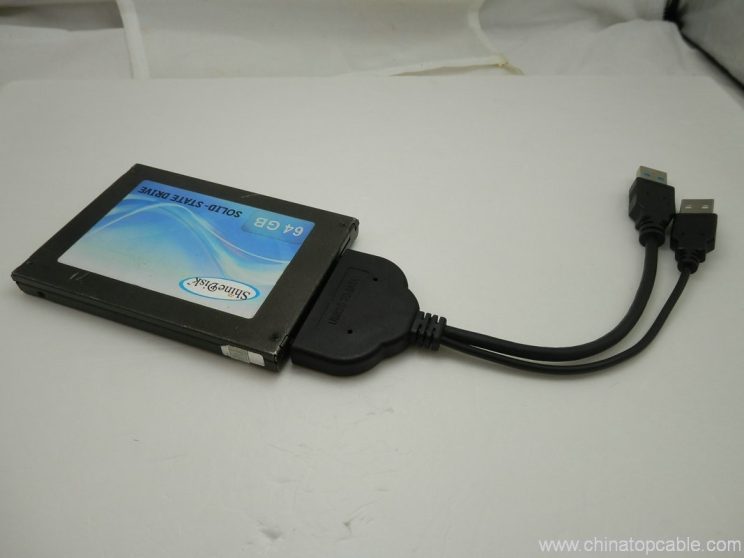

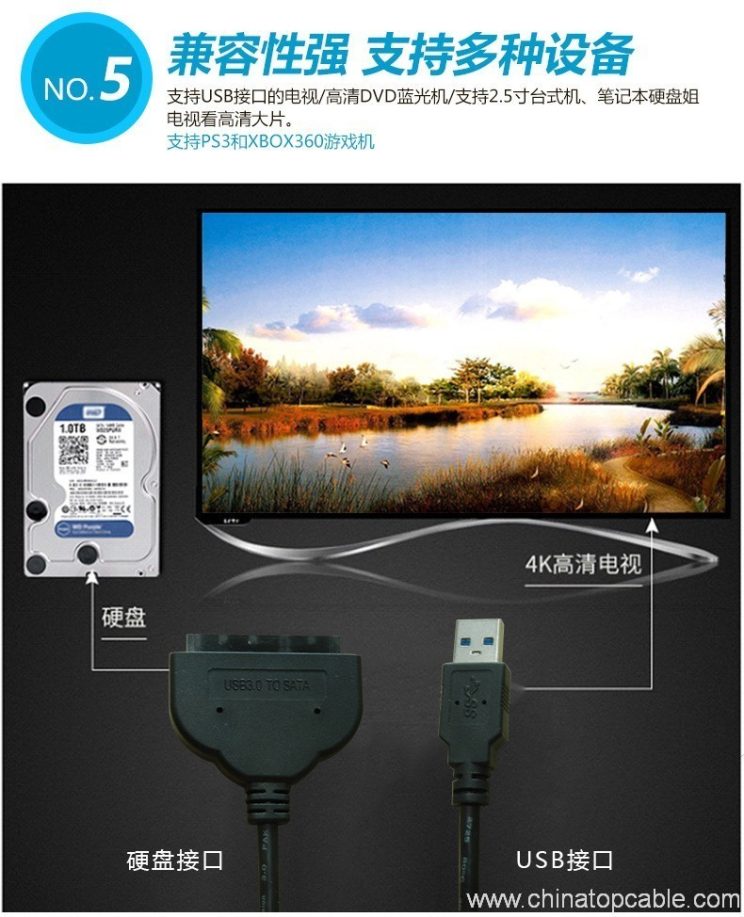

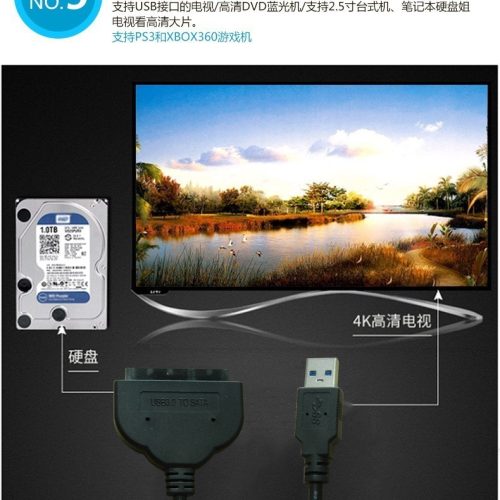

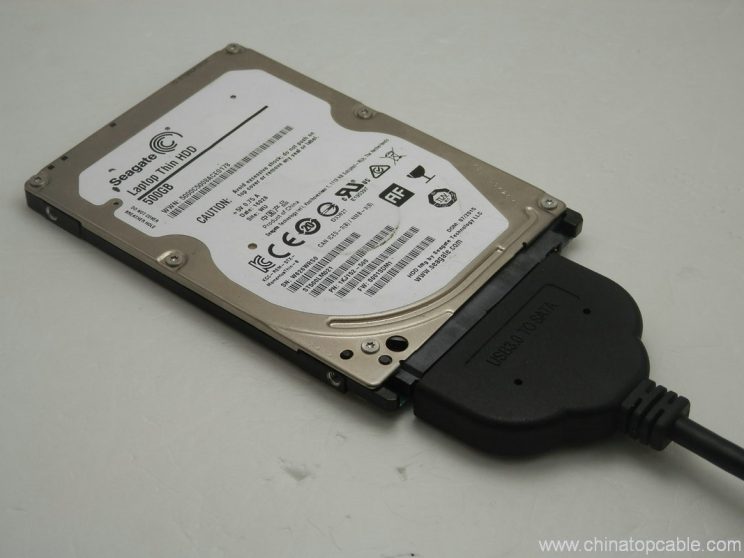

• Reading a 2.5-inch drive pulled from a laptop

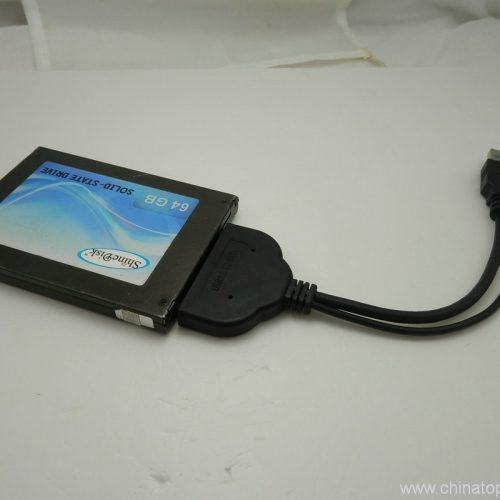

• Cloning an SSD where a stable 1.5A feed matters
• Using a spare 2.5-inch drive as external storage

Custom and OEM options

Connector plating, cable length and gauge, ferrite cores, jacket colour, printed logo and retail packaging with your own artwork can all be specified. Standard items from 100 pcs, custom builds from 500 pcs, free samples, production in 20–25 working days.

Samples, packing options, payment terms and warranty conditions are set out in How to Order and Delivery Information.
