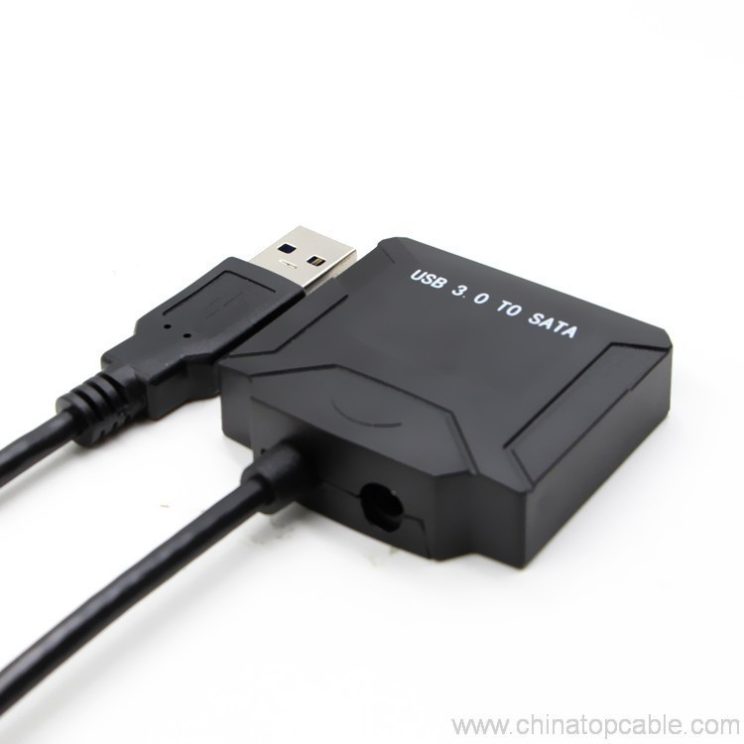

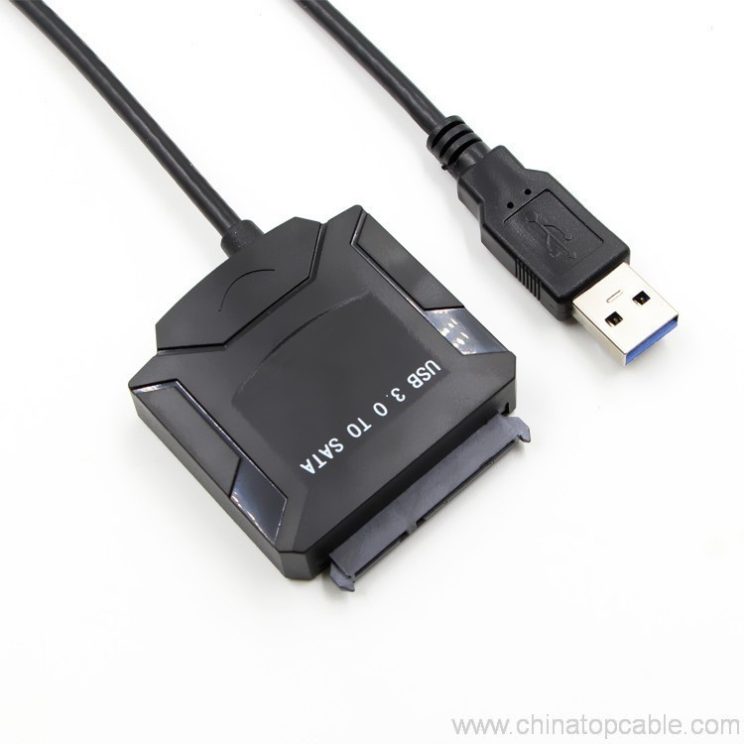

USB 3.0 to SATA Adapter Cable for 2.5/3.5-inch Drives

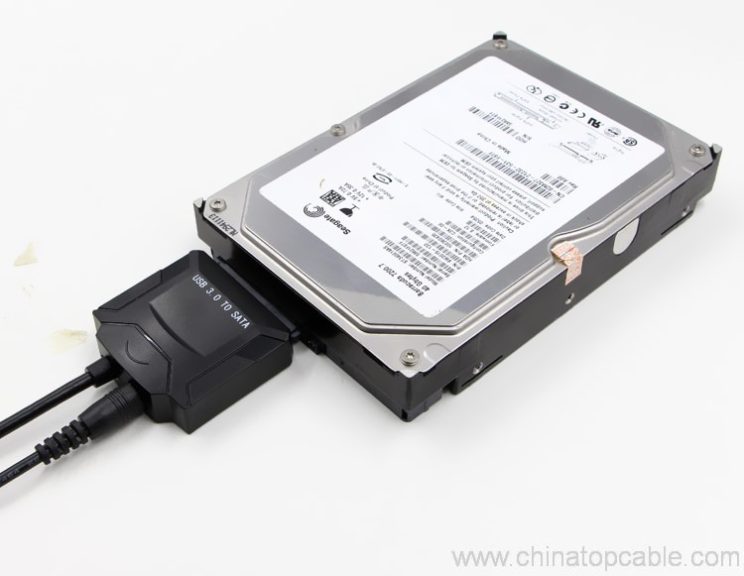

An adapter that turns any standard SATA drive into external storage. Connect a 2.5-inch hard disk or SSD, or a 3.5-inch SATA drive, to a computer through a USB 3.0 port and it appears as a removable drive — the fastest way to back up a disk, clone one to another, or recover files from a machine that will not boot.

At 3 ft the cable gives room to lay the drive beside the computer rather than hang it off the port. Data moves at up to 5 Gbps, ten times the USB 2.0 rate, and the adapter is compliant with the Serial ATA Rev 2.6 specification.

Key features

• USB 3.0 A male to SATA male
• Supports 2.5-inch and 3.5-inch SATA HDDs and SSDs
• Up to 5 Gbps; backward compatible with USB 2.0
• Compliant with Serial ATA Rev 2.6
• 3 ft (approx. 0.9 m) cable
• Works with Windows, Linux and Mac

Specifications

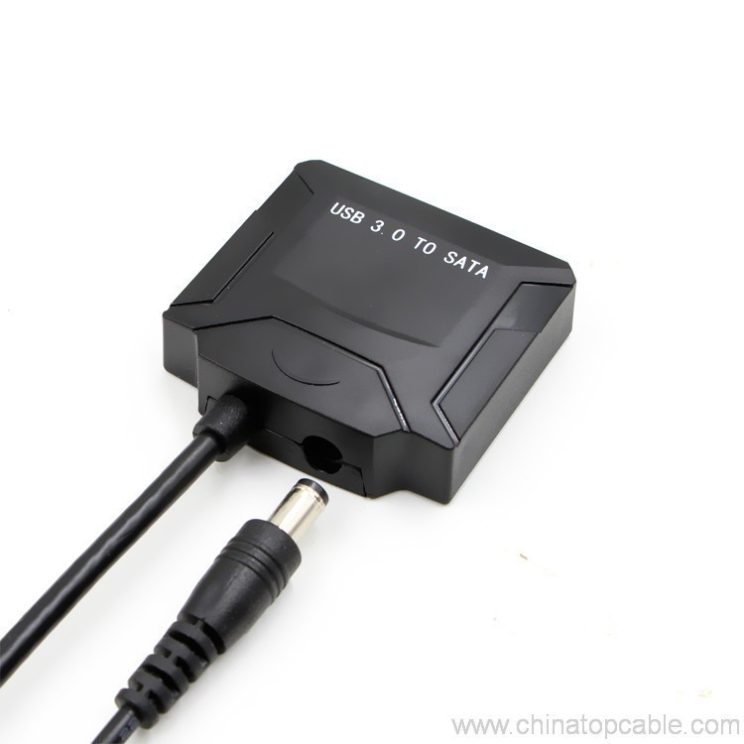

One power note that matters. A 2.5-inch drive runs from USB power, but a 3.5-inch SATA drive needs an external 12V supply, which is not included — contact us if you want the 12V adapter added to the order. The factory package list and the description disagree on whether a power adapter ships in the box, so we will confirm the contents on your quote.

Typical applications

• Backing up or cloning a laptop or desktop drive
• Reading a 3.5-inch drive from a retired PC
• Quick-access external storage without an enclosure

Custom and OEM options

Connector plating, cable length and gauge, ferrite cores, jacket colour, printed logo and retail packaging with your own artwork can all be specified. Standard items from 100 pcs, custom builds from 500 pcs, free samples, production in 20–25 working days.
