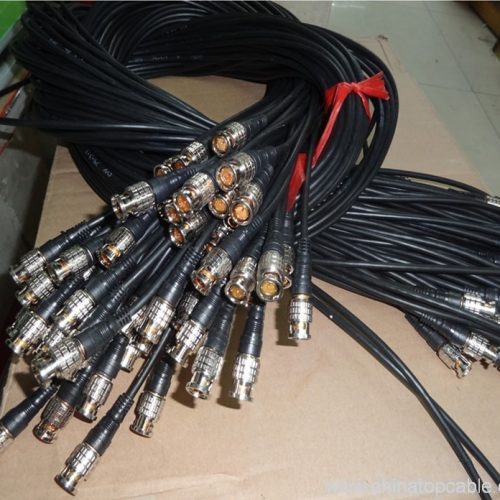

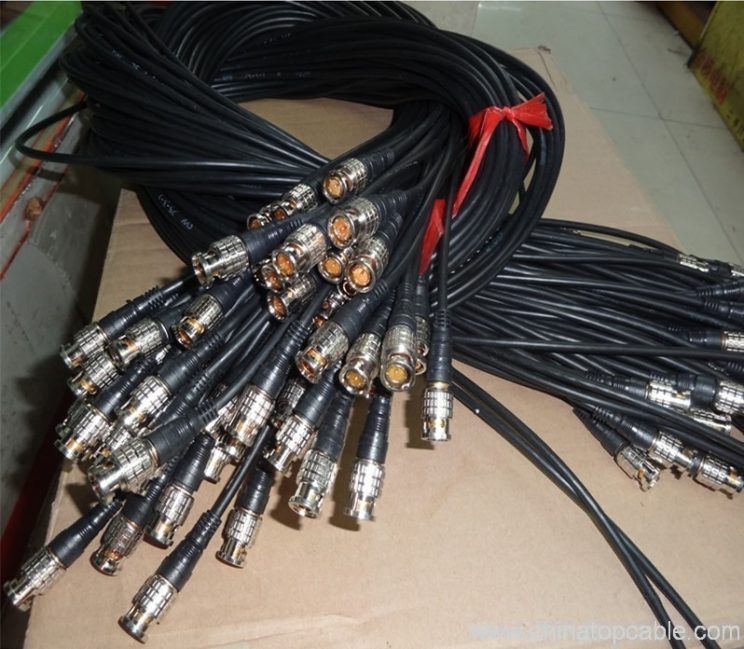

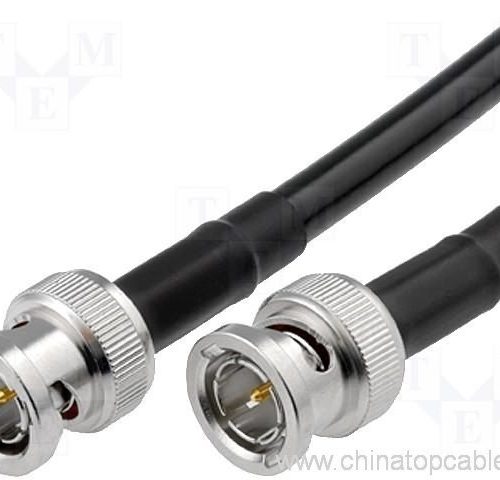

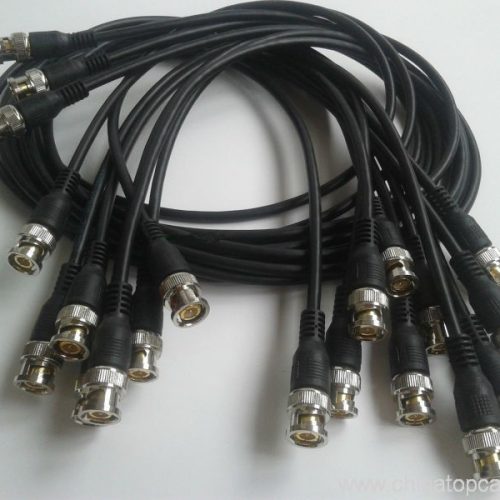

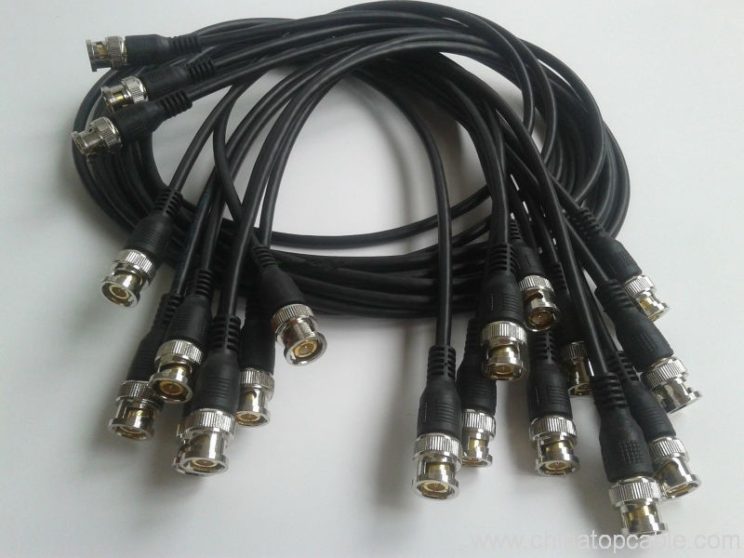

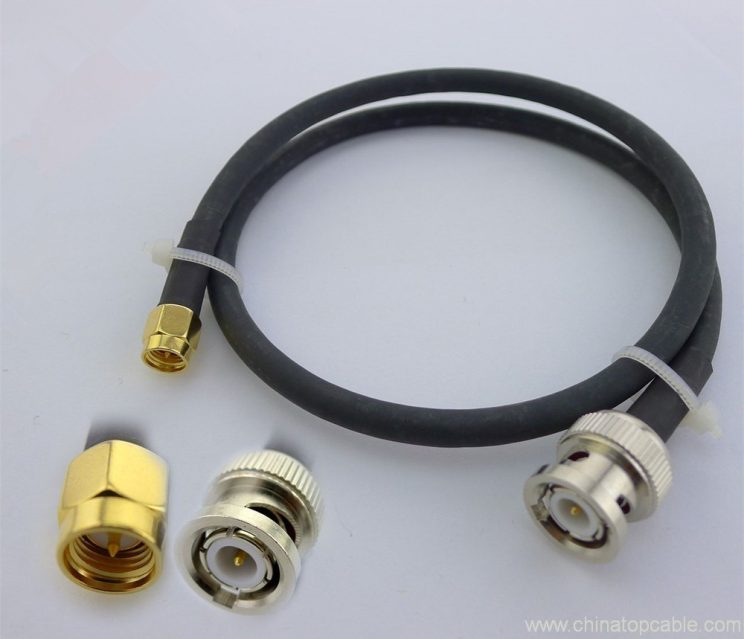

CCTV & Video BNC Cable, RG6 RG58 RG59 RG174
$8.90 – $15.00 / pc · MOQ 500 pcs
A CCTV and video BNC cable on RG6, RG58, RG59 or RG174: 50/75 Ohm, DC to 11 GHz, brass shielding and solder contacts.
- Description
A family of BNC coaxial cables for CCTV and video work, built on whichever coax the run needs: RG6 for long low-loss distribution, RG59 for standard video, RG58 for 50 Ohm instrument work and RG174 for tight, flexible patch leads.
All share the same electrical platform — brass shielding, solder contacts, DC to 11 GHz operation and 500 mating cycles — so the choice is simply a matter of impedance and loss. Tell us the run length and the system, and we will recommend the cable.
Key features
- BNC coaxial cable on RG6 / RG58 / RG59 / RG174
- 50 Ohm or 75 Ohm, matched to the cable

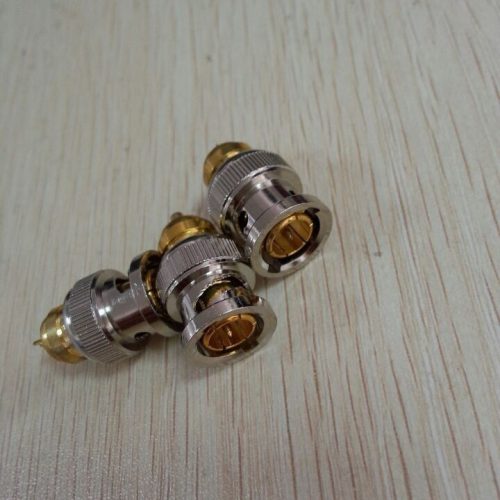

- Brass connector body and shielding
- DC to 11 GHz
- Insertion loss ≤0.24 dB at 6 GHz
- Insulation resistance ≥5000 MOhm
Specifications
| Type | BNC coaxial brass connector cable |
| Cable | RG6 / RG58 / RG59 / RG174 |
| Contact | Wire solder |
| Shielding | Brass |
| Impedance | 50 / 75 Ohm |
| Application | CCTV, audio-video, communication |
Technical characteristics
| Temperature range | -55 to +155 °C (PE cable -40 to 85 °C) |
| Frequency | DC to 11 GHz |
| Working voltage | 1000 V r.m.s. at sea level |
| Withstanding voltage | 2500 V r.m.s. at sea level |
| Contact resistance | ≤1 mOhm |
| VSWR | ≤1.15/6 GHz straight; ≤1.25/6 GHz right angle |
| Durability | ≥500 cycles |
Important applications
- Medical electronics
- Test and laboratory
- Measurement instrumentation
- Data and telecom systems
- Audio and video applications
- Military and aerospace
- Industrial controls
- Nuclear technology
A note on impedance: the family spans 50 Ohm and 75 Ohm cable, and the two must not be mixed within one signal path. Pick the cable to match your equipment — 75 Ohm for video and CCTV, 50 Ohm for RF test and instrumentation — and tell us the system so we build to it.
Custom and OEM options
Connector type, cable length, jacket colour, printed logo and retail packaging with your own artwork can all be specified. Standard items from 100 pcs, custom builds from 500 pcs, free samples, production in 20–25 working days.
