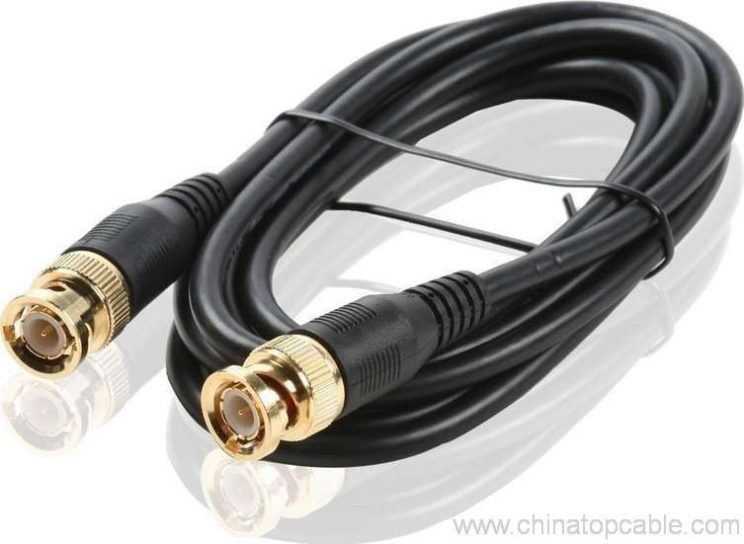

BNC Coaxial Brass Connector Cable, RG59
$10.00 – $20.00 / pc · MOQ 500 pcs
A BNC coaxial brass connector cable on RG59: 75 Ohm, DC to 11 GHz, ≤0.24 dB insertion loss at 6 GHz, for machines, medical and AV use.
- Description
A BNC coaxial cable built on RG59 with brass connectors. BNC is the bayonet-lock coax connector used wherever a quick, secure, 75 Ohm connection is wanted — test benches, machines, medical equipment, military gear and audio-video installations.
The brass body gives the connector its durability and its shielding, and the mating is rated for 500 cycles, so it stands up to being connected and reconnected in service.
Key features
- BNC coaxial cable on RG59
- Brass connector body and shielding
- 75 Ohm impedance; DC to 11 GHz
- Insertion loss ≤0.24 dB at 6 GHz
- Insulation resistance ≥5000 MOhm
- Rated for 500 mating cycles
Specifications
| Type | BNC coaxial brass connector cable |
| Cable | RG59 |
| Contact | Wire solder |
| Shielding | Brass |
| Gender | Male and female |
| Colour | Silver |
| Application | Machines, medical, military, audio-video, communication |
Technical characteristics
| Temperature range | -55 to +155 °C (PE cable -40 to 85 °C) |
| Impedance | 75 Ohm |
| Frequency | DC to 11 GHz |
| Working voltage | 1000 V r.m.s. at sea level |
| Withstanding voltage | 2500 V r.m.s. at sea level |
| Contact resistance | ≤1 mOhm |
| Insertion loss | ≤0.24 dB (6 GHz) |
| VSWR | ≤1.15/6 GHz straight; ≤1.25/6 GHz right angle |
| Durability | ≥500 cycles |
Two things to confirm. The factory sheet prints the connector contact method as “wire solder”, while the product name says “compression connector” — they are different termination styles, so tell us which you need. And one row of the table, labelled “Rated Current”, actually carries the cable type (RG59) rather than a current figure; the electrical ratings you can rely on are the ones in the technical table.
Custom and OEM options
Connector type, cable length, jacket colour, printed logo and retail packaging with your own artwork can all be specified. Standard items from 100 pcs, custom builds from 500 pcs, free samples, production in 20–25 working days.
