- Membrane switch is a operating system of key function, indicating element and instrument panel brought together. Membrane switch is also named light touch keyboard, using planar multilayer combination sealing structure as a whole. It is a new type of optical, mechanical and electrical integration of electronic component. It can replace the keys of conventional discrete component , more reliably operating system tasks.
- Membrane switch panel is the main type of membrane switch, made of the basis of rigid or flexible printed circuit board, installed tactile or non-tactile buttons and plastic membrane overlay printed with colorful decorative pattern. It is a new type of human conversation interface. The connection between the switching circuit with the machine can be completed by the splicing or welding method.Printing Circuit Techinical Parameters:
Electronic Characteristic <35V( DC) <100mA 1W
Life Expectancy Flat type≥ 500 million times Tactile type≥ 100 million times
Contact Resistance 10Ω~ 500Ω( According the trace length and materials to confirm)
Operation Temperature -40°c~ +80°c Insulating Impedance > 100MΩ 250V DC Storage Temperature -40°c~ +85°c Resistance Of The Wire < 1 Ω⁄ cm width 1.27mm Humidity +40°c, 90%~95%, 240 hour Operation Force Flat type 57~ 284g( 2~ 10 Oz) Tactile type 170~ 397g( 6~ 14Oz)
Switch Stroke Flat type 0.1~0.5mm Tactile type 0.6~1.5mm

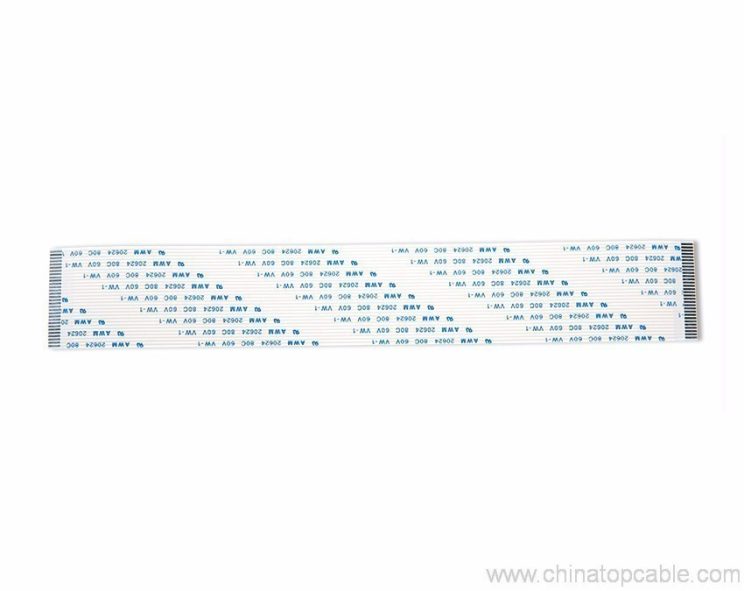

Free Enquiry for High Temperature Resistant Large Digital FFC Printed Circuit Board
Why choose us?
Our company is specializing in designing and manufacturing all kinds of cable assemblies, Annunciator cables, DC cables, USB cables, Audio and Video cables, HDMI/VGA cables,power cords, Charge adapters, etc.1. Supply the cable packing in accordance with your requirements.
2. Professional design team and QC team ensure quick OEM cable order.
3. High quality and best price promise profitable products and long relationship.
4. 24-hour online service guarantees timely reply about the details of the audio video RCA cable or computer power line.
5.we have ROHS & REACH compliance.
6.Customized designs are acceptable, small order are accepted .
Samples & Shipping
1. Payment:T/T,Paypal,Western Union2. Samples could be offered if need.
3. Shiping way:local warehouse,Expresss(DHL,Fedex,TNT,UPS,EMS), Air,or sea.
Package
We know customers are looking products with attractive packaging,now,you can take the full advantage of our providing services:1. Premium Slide Blister is competitive in price but catch customer eyes. Customer designs are available by request
2. Gift box packing to make your products more environmental. Customer designs are available by request
3. Poly bag with card header and barcode number is low cost but good looking. Customer designs are available by request.
4.Bulk packing in pp Bag for industrial users.
Warranty
1:All items have 1 year guarantee.If your purchase do not meet merchantable quality, fitness for purpose or match the description, we can make sure your issues are resolved .2.For wrong shipped items, Please contact us, we will arrange to deliver the correct items or return all your payment.
3.For defective or faulty products,please contact us first,we will resolved your issues.
