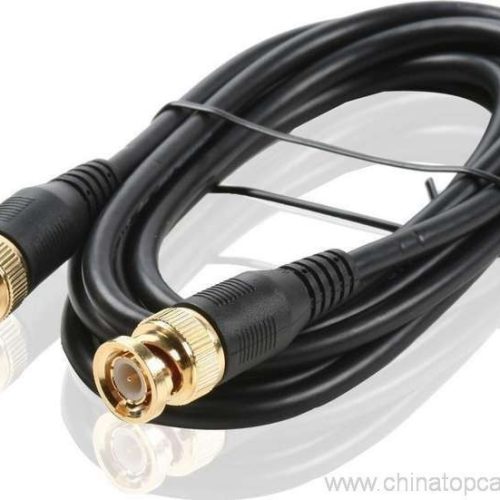

CCTV BNC to BNC RG45 Coaxial Cable
$9.50 – $18.00 / pc · MOQ 500 pcs
A CCTV BNC to BNC coaxial cable on RG45: 75 Ohm, DC to 11 GHz, brass shielding and solder contacts, for CCTV and AV installations.
- Description
A BNC to BNC coaxial cable for CCTV runs and audio-video installations, with a bayonet-lock plug at each end. BNC is the connector CCTV systems use because it locks with a quarter turn and holds a 75 Ohm line stable through vibration and repeated handling.
The brass shield and solder contacts keep the signal clean over the run, and the cable is built to the same electrical specification as the rest of the range — DC to 11 GHz, 75 Ohm, 500 mating cycles.
Key features
- BNC to BNC coaxial cable
- Brass connector body and shielding
- 75 Ohm impedance; DC to 11 GHz
- Insertion loss ≤0.24 dB at 6 GHz
- Insulation resistance ≥5000 MOhm
- Each item tested before shipping
Specifications
| Type | BNC to BNC coaxial cable |
| Cable | RG45 |
| Contact | Wire solder |
| Shielding | Brass |
| Gender | Male and female |
| Application | CCTV, audio-video, communication |
Technical characteristics
| Temperature range | -55 to +155 °C (PE cable -40 to 85 °C) |
| Impedance | 75 Ohm |
| Frequency | DC to 11 GHz |
| Working voltage | 1000 V r.m.s. at sea level |
| Withstanding voltage | 2500 V r.m.s. at sea level |
| Contact resistance | ≤1 mOhm |
| Insertion loss | ≤0.24 dB (6 GHz) |
| Durability | ≥500 cycles |
One point to confirm: the cable is quoted here as RG45, which is not a common coaxial designation. Most CCTV and video systems use RG59 or RG6 — tell us which your installation runs and we will build the cable on that type, so the impedance and loss figures match.
Typical applications
- CCTV camera to DVR connections
- Audio-video and broadcast links
- Communication and instrument leads
Custom and OEM options
Connector type, cable length, jacket colour, printed logo and retail packaging with your own artwork can all be specified. Standard items from 100 pcs, custom builds from 500 pcs, free samples, production in 20–25 working days.
