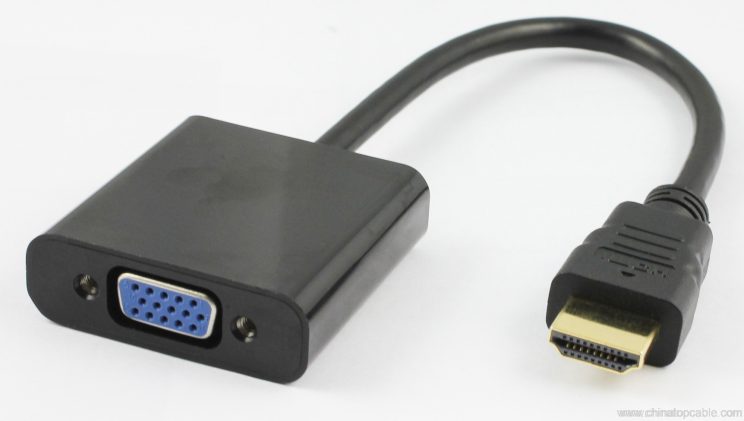

HDMI to VGA Converter Cable, 1920×1200, No Audio
$11.00 – $21.00 / pc · MOQ 500 pcs
Converts an HDMI source to a VGA display at up to 1920×1200@60Hz, with an on-chip receiver, deep-color support and ESD protection. Video only, no audio.
- Description
This converter connects HDMI sources — notebooks, laptops, HD DVD and HD DV players that no longer carry a VGA port — to older projectors, displays, LCDs and TVs built around a VGA input. The conversion is active: an on-chip HDMI receiver with an equalizer handles the digital side, supporting 8, 10 and 12-bit deep color at up to a 2.25 GHz data rate.
Video output tops out at 1920×1200 at 60 Hz, which covers the working resolution of nearly every VGA projector and desktop monitor still in service. Two limits are stated plainly so nobody is surprised: there is no audio output — route sound separately from the source — and the unit draws its power from the HDMI connection, with an external-power option available for sources that run lean. ESD protection is rated at 8 kV and power consumption is 190 mA.
Key features
- HDMI male input to VGA female output
- Up to 1920×1200 at 60 Hz
- HDMI 1.3a compliant receiver with equalizer
- 8 / 10 / 12-bit deep color, 2.25 GHz data rate
- 8 kV ESD protection, 190 mA consumption
Specifications
| Input | HDMI male |
| Output | VGA female |
| Max resolution | 1920 x 1200 @ 60 Hz |
| Standard | HDMI 1.3a |
| Deep color | 8 / 10 / 12-bit |
| Audio | Not supported |
| Power | From HDMI source; external power optional |
| ESD / consumption | 8 kV / 190 mA |
Typical applications
- New notebooks into legacy projectors and screens
- Conference rooms with installed VGA cabling
- Classroom displays and training-room panels
- Industrial monitors and kiosk screens on VGA
Custom and OEM options
Shell finish, lead length and packing are production options, and a powered variant is available for lean HDMI sources. Orders start from 100 pcs per model.
FAQ
Does it carry audio to my speakers?
No. VGA carries video only — take the audio line separately from the source device.
When do I need the external power option?
On sources whose HDMI port supplies limited current, typically thin laptops. Standard desktops and players run it from the port alone.
