Micro HDMI (Type D) to HDMI Cable, Male to Male
$5.60 – $15.20 / pc · MOQ 500 pcs
Micro HDMI (type D) to full-size HDMI cable that takes the smallest HDMI socket on a phone, action camera or small computer into a TV, monitor or capture card.
- Description

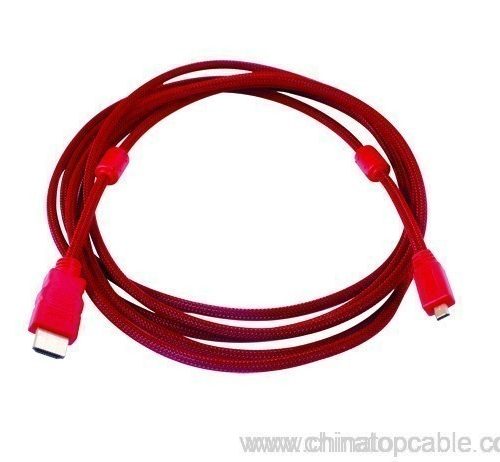

This is the micro HDMI cable: a type D male plug at one end, a standard type A male plug at the other. Type D is the smallest HDMI connector, found on action cameras, some phones and tablets, and most single-board computers, and it is not interchangeable with the larger mini HDMI type C plug.
The cable carries the video and audio signal from those devices to a TV, monitor, projector or capture card, and the 5.5 mm jacket stays light so it does not lever the small socket. Colour options include black, red and white for builds where the cable is part of the visible kit.
Key features
- Micro HDMI type D male to HDMI type A male
- Slim 5.5 mm jacket for small devices
- 24K gold plated or nickel plated contacts
- Aluminium foil plus braided shield
- Black, red or white jacket
Specifications
| Type | Micro HDMI (D) male to HDMI (A) male |
| Outer diameter | 5.5 mm |
| Length | Up to 10 m, to order |
| Rating | Up to 10.2 Gbps |
| Resolution | 4K, 1080p and 720p, device dependent |
| Conductor | Bare copper, tinned copper or CCS |
| Shielding | Aluminium foil with braid |
| Jacket | PVC, with or without nylon mesh |
| Compliance | ATC, CE, FCC, RoHS, REACH |
Typical applications
- Action camera to a TV or field monitor
- Phone or tablet to a hotel TV
- Single-board computer to a desktop monitor
- Capture-card and streaming builds
Custom and OEM options
Length, jacket colour, shell finish, ferrite cores and packing are open to order, and right-angle and up-angled micro HDMI plugs are available for camera rigs.
FAQ
Is micro HDMI the same as mini HDMI?
No. Micro HDMI is type D and mini HDMI is type C — different widths. Check the socket before ordering.
Can it charge the device?
No, it carries video and audio only.
