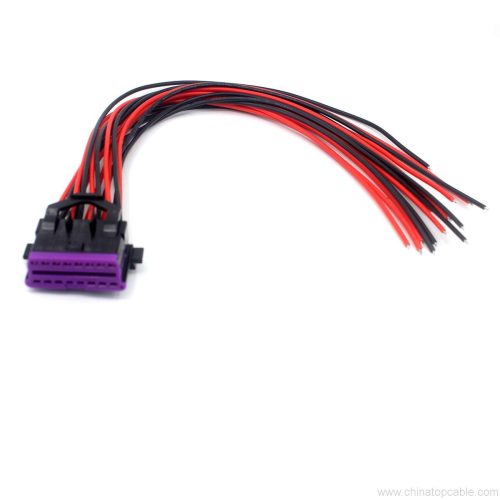

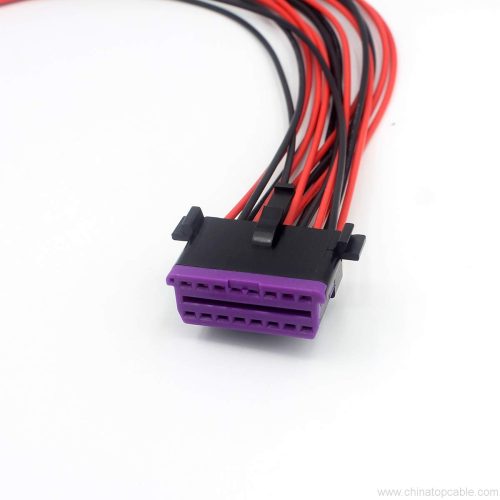

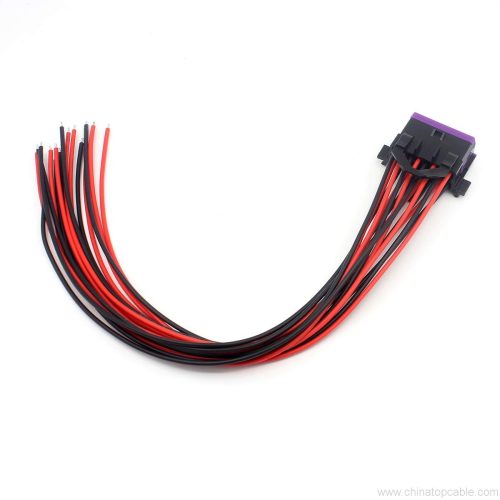

J1962 Female Replacement Connector for VW, Audi, Skoda
$10.00 / pc · MOQ 500 pcs
Rebuild the vehicle-side OBD port for VW, Audi and Skoda applications: J1962 female housing, 16 wire sockets, hundreds of mating cycles, stable moulds, RoHS.
- Description
The J1962 female replacement connector serves the vehicle-side port rebuild, referenced in the listing to VW, Audi and Skoda installations — the VAG family that shares the J1962 geometry with every OBD-II vehicle, listed here because these are the installs this build goes into most. Sixteen female wire sockets take the harness termination.
The contact and mould spec is the family standard: high-quality spring steel contacts gripping the inserted device for hundreds of mating cycles, OEM moulds insuring stable sockets that connect every time and do not wobble, -30 to 84°C working temperature, RoHS-compliant materials.
Key features
- OBD II female J1962 replacement connector
- 16 female wire sockets
- Referenced to VW, Audi, Skoda installations
- Spring-steel contacts, hundreds of mating cycles
- Stable OEM moulds, non-wobble fit
- Working temperature -30 to 84°C, RoHS
Specifications
| Type | J1962 female replacement connector with cable |
| Sockets | 16 female wire sockets |
| Referenced vehicles | VW, Audi, Skoda |
| Working temperature | -30 to 84°C |
| Materials | RoHS compliant |
An honest scope note: J1962 geometry is one standard — the VAG references describe the typical fit, not an exclusive one; confirm the harness side per vehicle at sampling.
Typical applications
- VW / Audi / Skoda port repairs
- Vehicle-side harness rebuilds
- Workshop connector stock
Custom and OEM options
Quantity and packing run per order; samples ship in 3–7 days.
FAQ
Is it only for VAG cars?
No — J1962 is the shared standard; VW, Audi and Skoda are the referenced typical installs.
How does it differ from the GM-referenced listing?
Same connector family and contact spec; the referenced vehicle set differs for ordering clarity.
