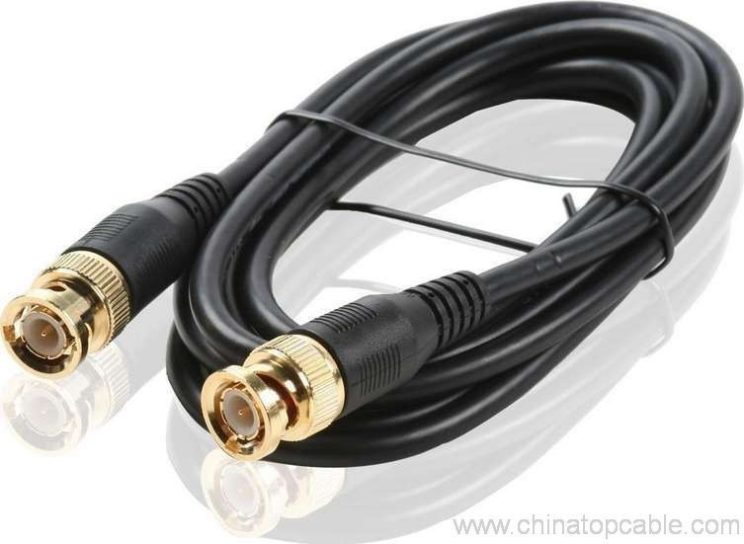

CCTV BNC to BNC RG45 cable RG45

Electrical Spec :



Type	BNC coaxial brass connector cable
Rated Current	RG45
contact way	wire solder
Shielding	Brass
Gender	male and female
color	silver
Application	CCTV, Audio-video, Communicate

MAJOR TECHNICAL CHARACTERISTICS:

Temperature Range		-55 to +155°C (PE Cable -40 to 85°C)
Vibration		100m/s (10-500Hz), 10g
Impedance		75 Ω
Frequency		DC to 11GHZ
Working Voltage		1000V r.m.s at sea level
Withstanding Voltage		2500V r.m.s at sea level
Contact Resistance	Center contact	≤1m Ω
	Outer contact	≤1m Ω
Insertion Loss		≤0.24dB(6GHz)
Insulation resistance		≥5000M Ω
Center Conductor Retention Force		≥0.56N
Voltage Standing Wave Ratio	Straight	≤1.15/6GHz
	Right angle	≤1.25/6GHz
Durability(mating)		≥500cycles

Choosing tips:

If you have purchased these connector and know the original model, please tell us. We will directly offer you our corresponding one.

If you don’t know much about the connector, please make choose according the following factors:

1 the use of the environment, indoors or outdoors, waterproof or not;



2 the panel hole size, to select the appropriate plug and socket of right dimension;



3 the current-voltage and the realization of the function, to determine the cores;



4 select the appropriate clamp diameter and sheath;



5 according to the actual needs of different angles of the keys, to determine the keying (the standard keys as G).



Free Enquiry for CCTV BNC to BNC RG45 cable RG45

---
