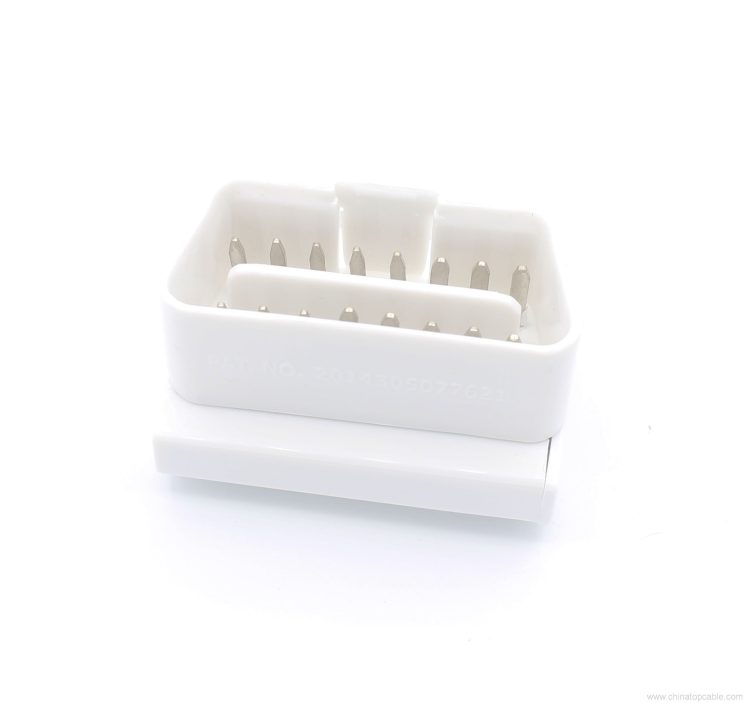

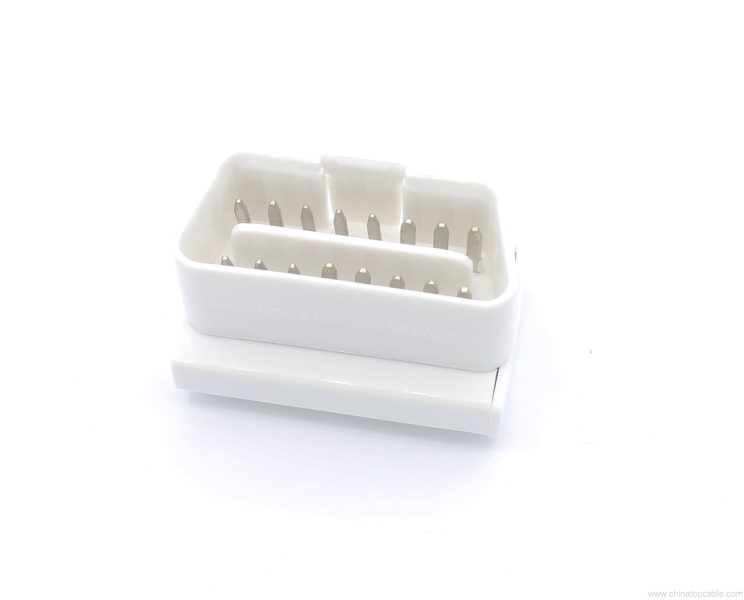

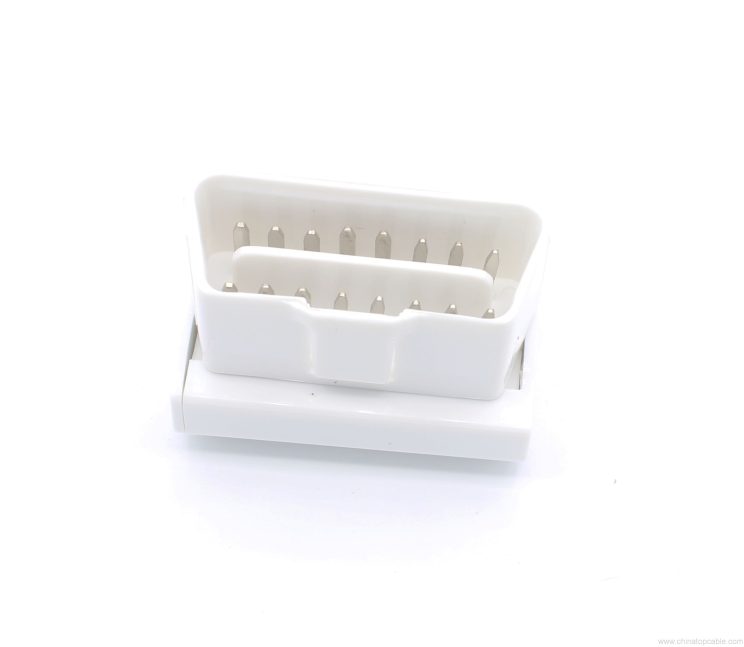

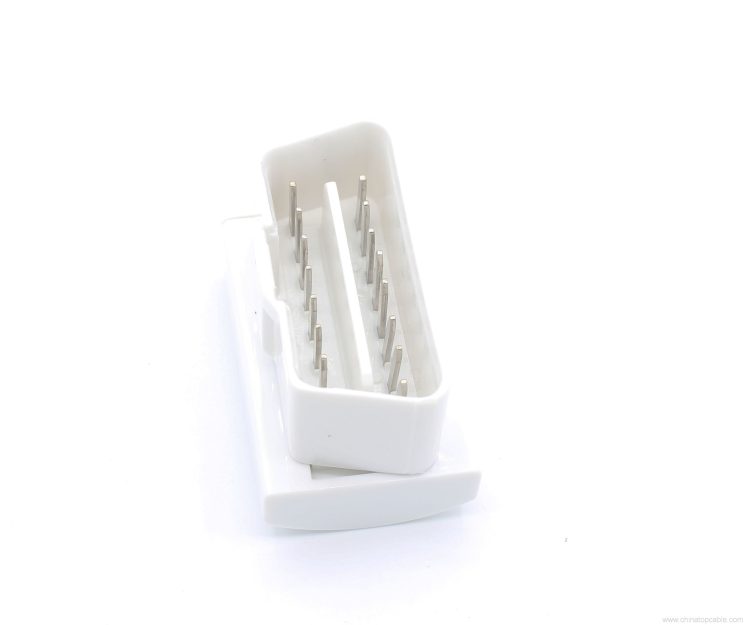

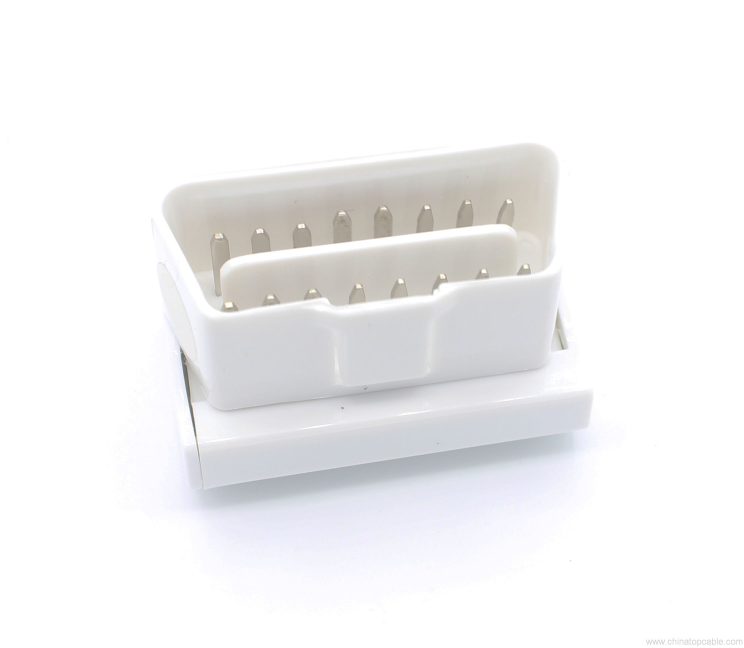

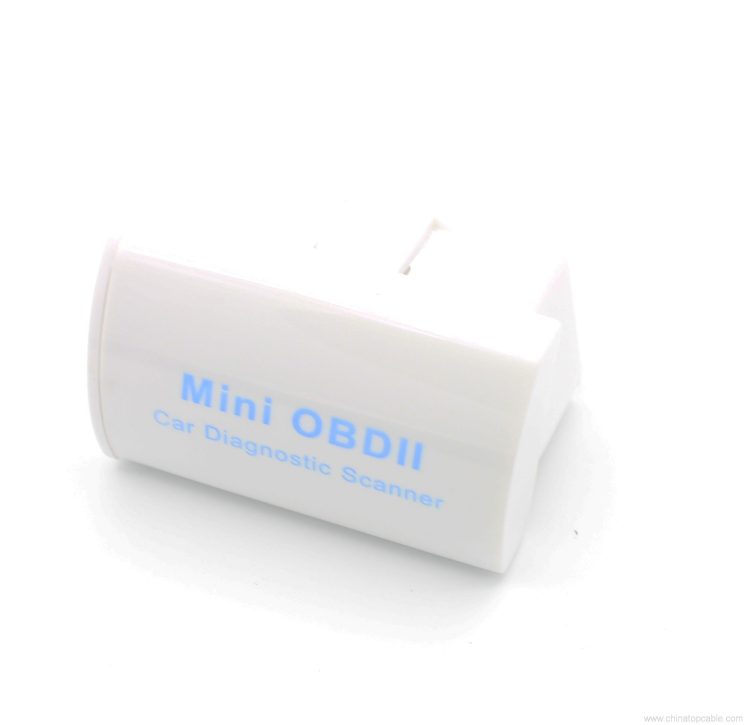

Bluetooth Mini Dome ELM327 OBD2 Scanner, White

The white dome is the same scanner as its blue and black siblings under the shell: an ELM327 processor in a pocket-format body that pairs over Bluetooth Classic to Android phones and Windows laptops. Read generic and manufacturer-specific trouble codes — more than 3000 generic definitions in the database — see what each means, clear them, and watch the check-engine light go out instead of paying a shop just to tell you the gas cap was loose.

Live sensor data streams the full everyday set: RPM, calculated load, coolant temperature, vehicle speed, fuel system status, short- and long-term fuel trim, intake manifold pressure, timing advance, intake air temperature, air flow rate, throttle position, oxygen sensor voltages and fuel pressure. The white shell earns its keep in practice — against a dark footwell it is the version you actually find when you need it. Honest boundaries as for the whole dome family: no Nissan compatibility, and no iOS pairing — iPhone and iPad users need the WIFI or Bluetooth 4.0 variants.

Key features

• 3000+ generic code definitions, manufacturer codes supported
• Clears codes and resets the check-engine light
• Full live sensor stream to Android and Windows
• White dome body: 8.2 × 4.6 × 2.5 cm, 58 g
• Bluetooth Classic pairing

Specifications

Supported protocols

• SAE J1850 PWM (41.6 kbaud) and SAE J1850 VPW (10.4 kbaud)
• ISO 9141-2 (5 baud init, 10.4 kbaud)
• ISO 14230-4 KWP2000 (5 baud and fast init, 10.4 kbaud)
• ISO 15765-4 CAN (11-bit and 29-bit ID, 250 and 500 kbaud)

Sibling SKUs: blue is CTC5589, black is CTC5551 — pick a colour per vehicle and the dongles stop migrating between cars.

Typical applications

• Home garages doing their own code checks
• Multi-car households colour-coding one scanner each
• Pre-purchase used car inspections

Samples, packing options, payment terms and warranty conditions are set out in How to Order and Delivery Information.
