Bluetooth Mini Box ELM327 OBD2 Scanner, Blue
$7.90 / pc · MOQ 500 pcs
The blue mini-box ELM327 for Android phones: overvoltage-protected 12V electronics, 45mA idle draw, full sensor stream — with the honest note that it does not do iOS.
- Description
- Additional information

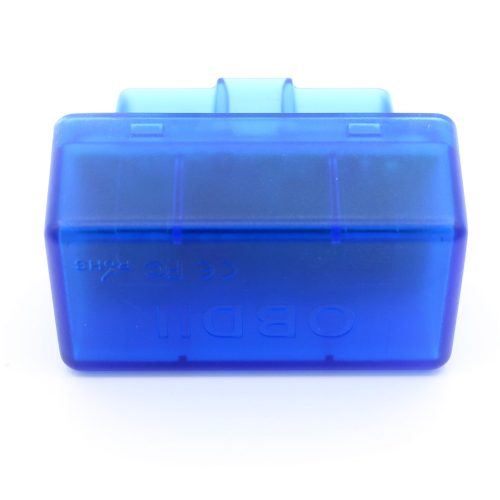

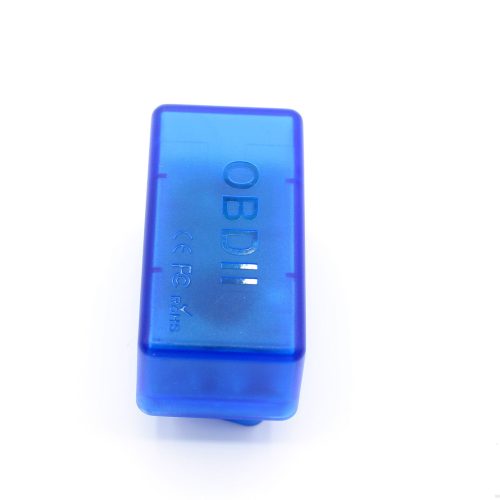

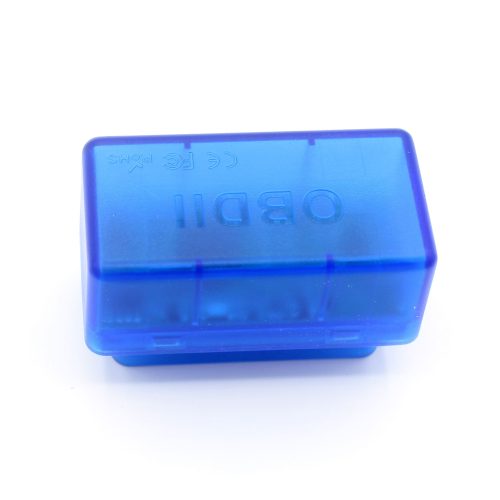

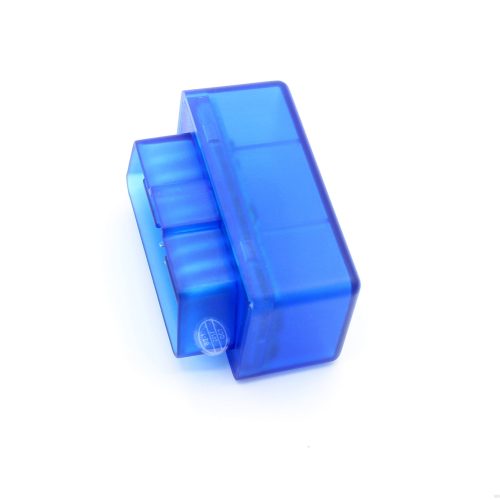

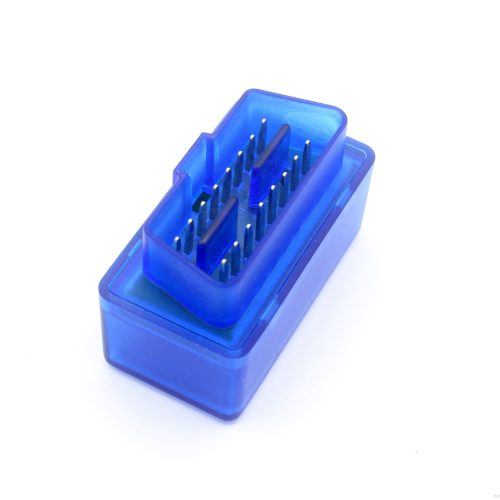

The mini-box format is the smallest ELM327 in this shop’s line — 4.7 × 3.2 × 2.3 cm and 22 g — and the blue shell is its most-ordered finish. Pair it from an Android smartphone (Bluetooth password 1234), open Easy OBD2, ScanMaster ELM or wOBD Crazy, and the engine computer’s codes and live data arrive on the phone in your hand. It reads generic and manufacturer-specific trouble codes, displays their meaning, clears them and turns the MIL off; the live stream covers RPM, load, coolant temperature, vehicle speed, fuel trims, manifold pressure, timing advance, intake air temperature, air flow rate, throttle position and oxygen sensor voltages.
The electricals are the reason to prefer the box over unbranded sticks: 12 V operation with internal protection against short circuits and overvoltage, and a nominal idle current of 45 mA — modest enough to leave plugged in between drives. Three honest notes carried over from the original listing: this unit does not work on iOS (buy the WIFI or Bluetooth 4.0 version for iPhone); the adapter does not support every protocol, so check your car model’s protocol before ordering — protocol-mismatch disputes cannot be accepted; and the tool reports engine status, it does not fix engines.
Key features
- Ultra-compact box body: 4.7 × 3.2 × 2.3 cm, 22 g
- 12 V input with short-circuit and overvoltage protection
- 45 mA nominal idle current — safe to leave plugged in
- Code reading, MIL reset and live sensors via Android apps
- Bluetooth pairing, password 1234
Specifications
| Colour | Blue |
| Processor | ELM327 |
| Operating voltage | 12 V, 45 mA idle |
| Size / weight | 4.7 × 3.2 × 2.3 cm / 22 g |
| Phones | Android smartphones |
Supported protocols
- SAE J1850 PWM (41.6 kbaud) and SAE J1850 VPW (10.4 kbaud)
- ISO 9141-2 (5 baud init, 10.4 kbaud)
- ISO 14230-4 KWP2000 (5 baud and fast init, 10.4 kbaud)
- ISO 15765-4 CAN (11-bit and 29-bit ID, 250 and 500 kbaud)

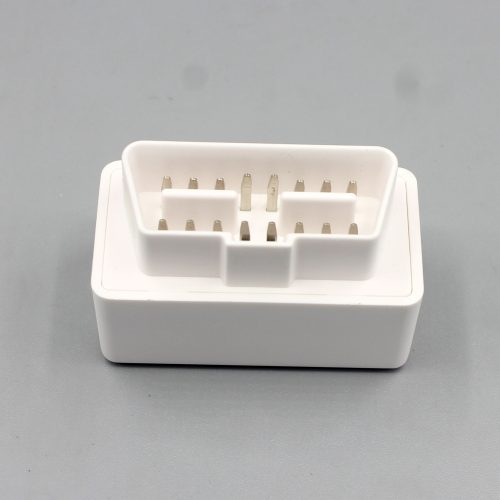

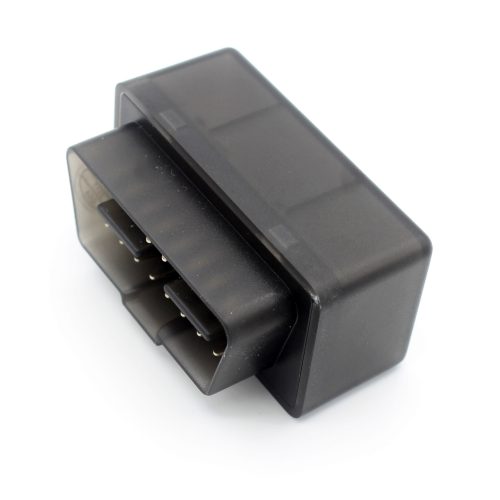

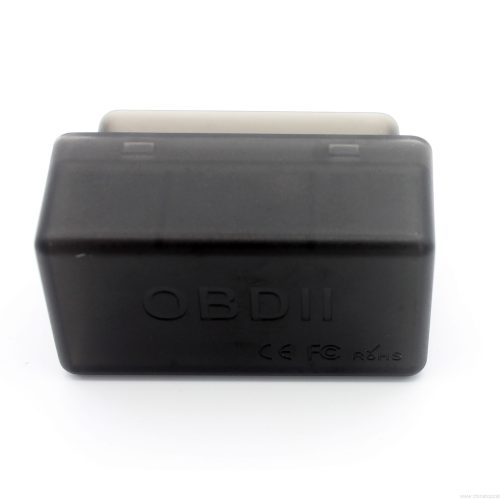

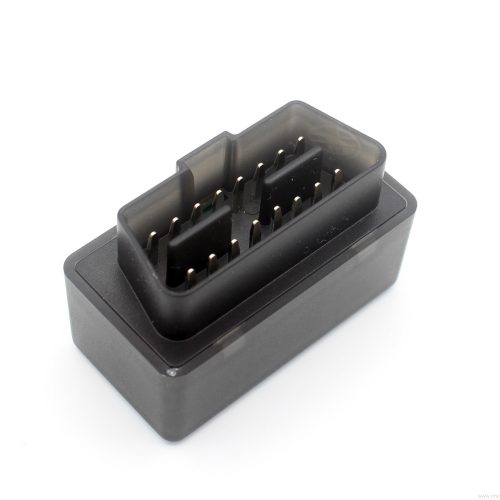

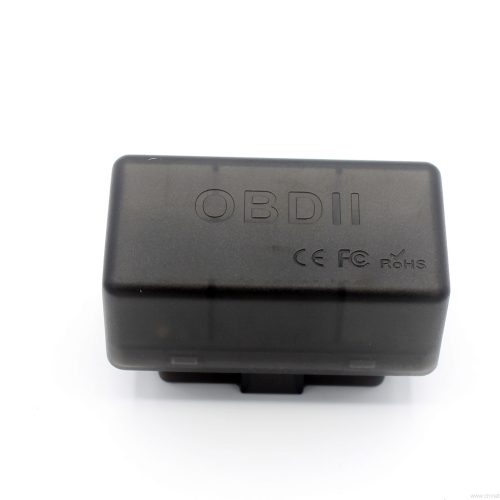

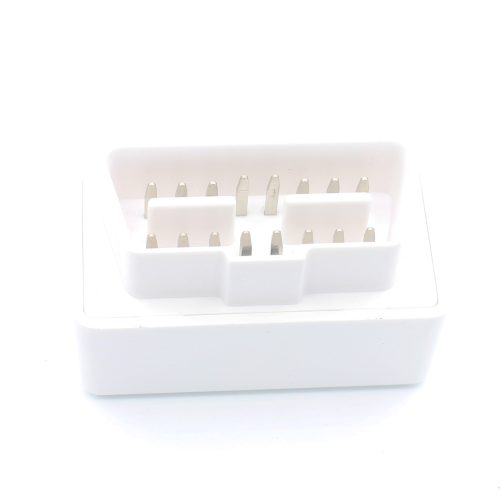

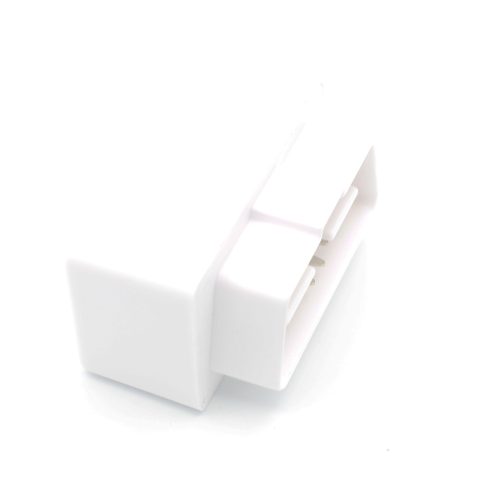

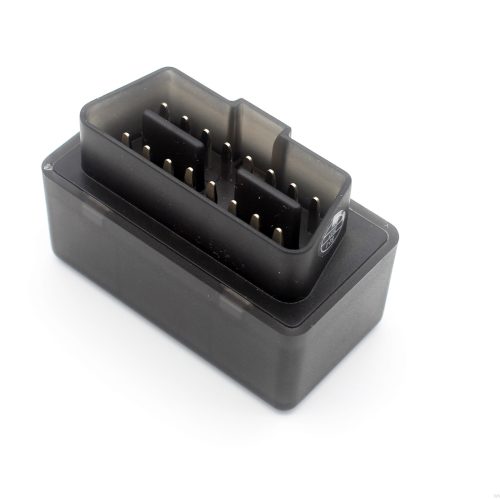

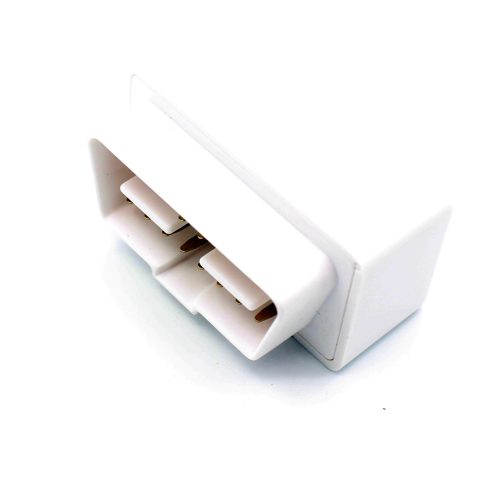

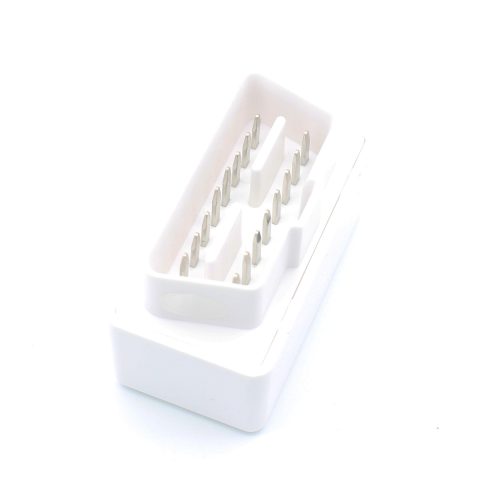

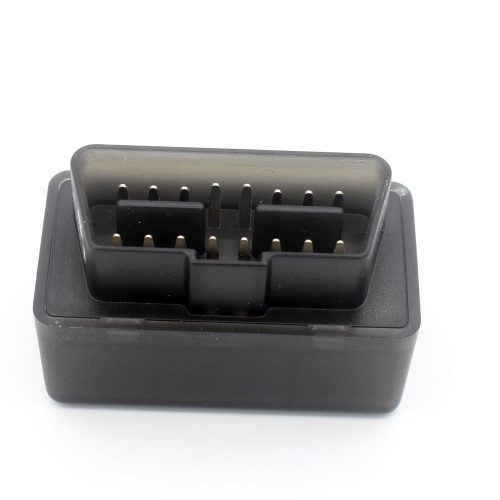

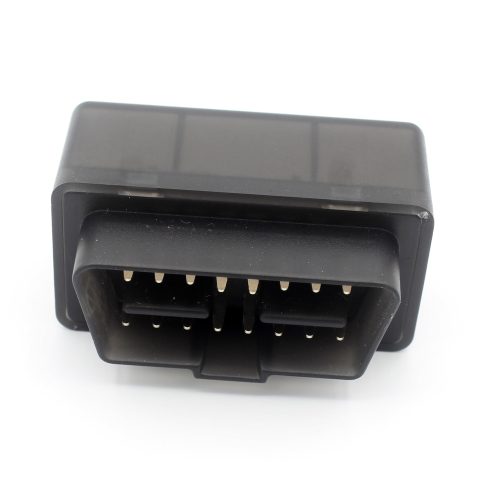

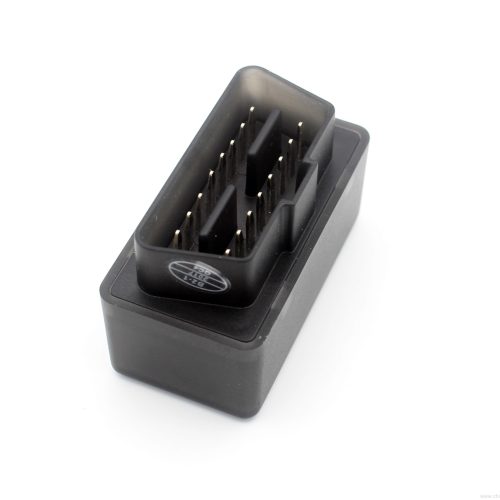

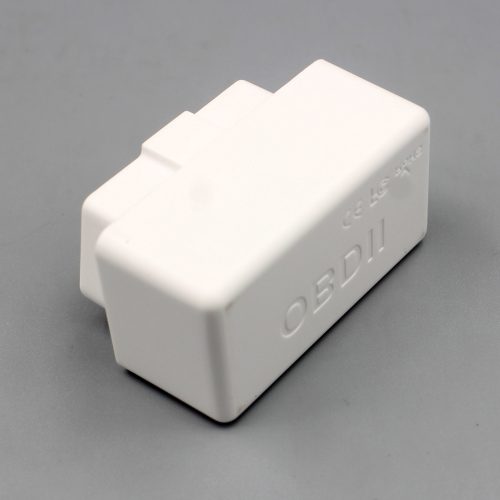

Sibling shells: black is CTC5471, white “Professional Edition” is CTC5491, and the switched version is CTC5511.
Typical applications
- Permanent-ish installation in an Android-only household
- Mechanics who want a dongle that survives ignition spikes
- Torque and DashCommand dashboards on daily drivers
