USB 3.0 to SATA/IDE Adapter Cable with Power Supply
$15.00 – $20.00 / pc · MOQ 500 pcs
A 1 m USB 3.0 to SATA/IDE adapter cable with its own power supply: connect a bare 2.5-inch or 3.5-inch SATA or IDE drive to a computer for access and backup.
- Description
A universal drive adapter for the bench: one end is a USB 3.0 plug, the other takes a bare SATA or IDE drive, and a separate power adapter feeds the disk. It is the tool for reading a drive pulled from an old machine, cloning one drive to another, or turning a spare disk into an external one without buying an enclosure.
The USB 3.0 link runs at up to 5 Gbps — ten times the USB 2.0 rate — so a large transfer finishes in a fraction of the time. At 1 m the cable reaches comfortably across a desk to the computer.
Key features
- USB 3.0 to SATA and IDE drive adapter

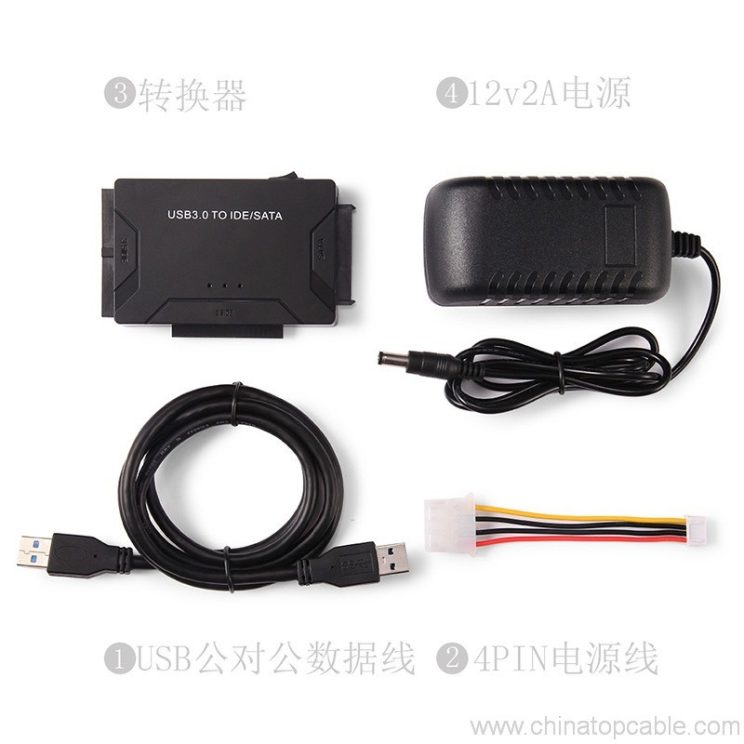

- Supplied with a power adapter for 5V/12V drives
- Up to 5 Gbps over USB 3.0
- 1 m cable length
- Plug and play for drive access and backup
- Works with 2.5-inch and 3.5-inch SATA, and IDE/ATAPI drives
Specifications
| Host end | USB 3.0 Type-A |
| Drive end | SATA + IDE/ATAPI |
| Data rate | Up to 5 Gbps |
| Length | 1 m |
| Power | Included power adapter |
| Software | None for basic access |
Two practical notes. A 3.5-inch drive needs the 12V rail from the power adapter, so keep it connected — a 2.5-inch drive may run from USB power alone. And if a drive is brand new, partition and format it first, or it will not appear with a usable volume.
Typical applications
- Reading a drive from a retired computer
- Cloning one drive to another on the bench

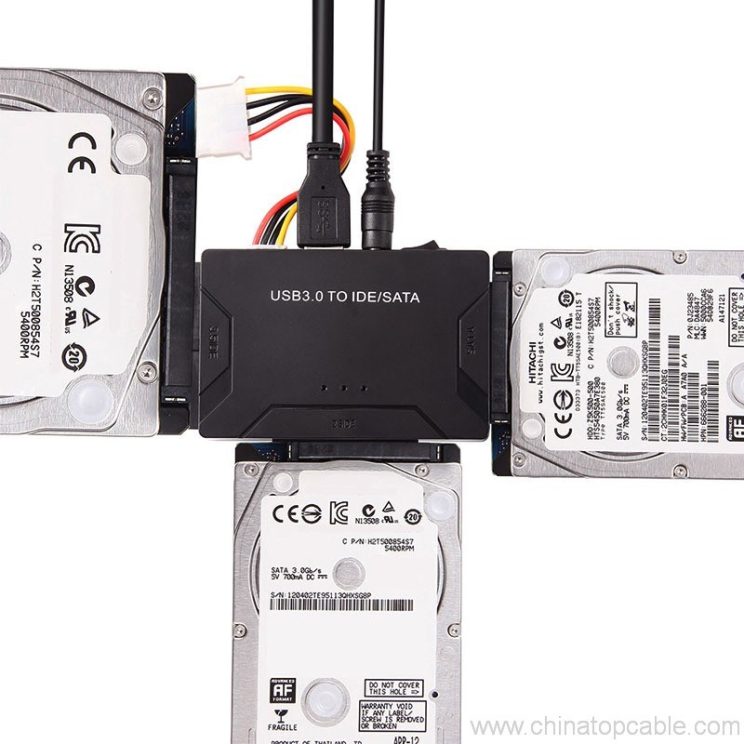

- Turning a spare SATA or IDE drive into external storage
Custom and OEM options
Connector plating, cable length and gauge, ferrite cores, jacket colour, printed logo and retail packaging with your own artwork can all be specified. Standard items from 100 pcs, custom builds from 500 pcs, free samples, production in 20–25 working days.
FAQ
Does it work with 3.5-inch drives?
Yes, with the included power adapter connected, since a 3.5-inch drive needs the 12V rail.
Does it handle IDE drives too?
Yes. Both SATA and IDE/ATAPI devices connect; a brand-new drive must be partitioned and formatted first.
