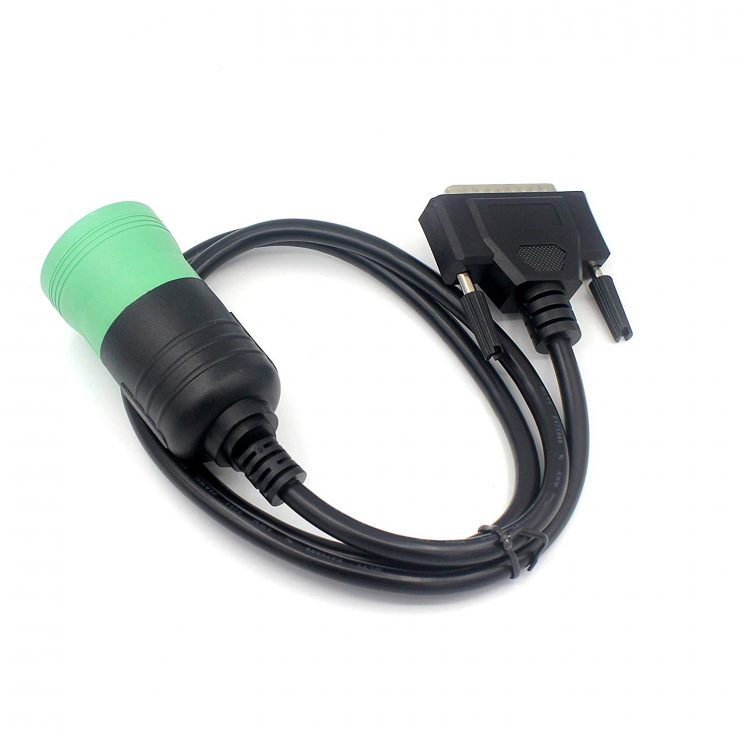

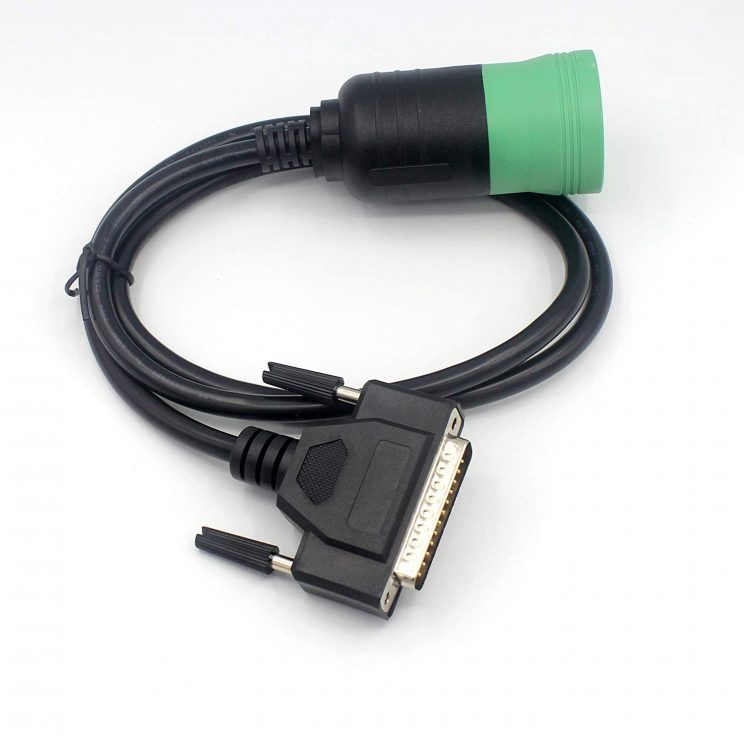

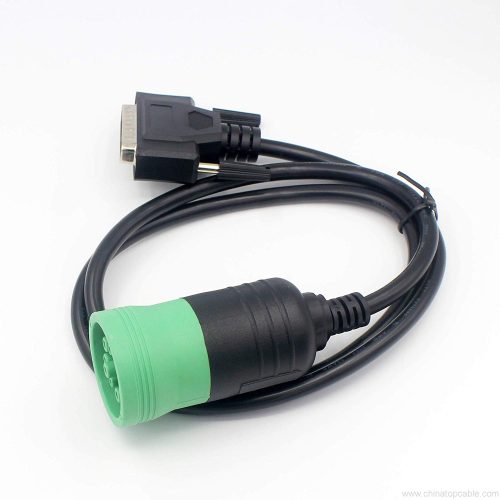

DB25 to J1939 Adapter Cable, 7-Pin Pass-Through

Truck diagnostic interfaces overwhelmingly speak DB25 on the host side and 9-pin Deutsch J1939 on the vehicle side — and this adapter is that bridge. One end presents a DB25 connector to your interface, the other presents the J1939 connector the truck expects, with a pass-through pin design so the signals your interface needs cross unchanged. It is the piece that lets a generic scanner kit, code reader or industrial controller talk to a heavy vehicle’s CAN bus without custom wiring.

Build quality follows the truck-market standard: moulded connector bodies with stable socket contacts that seat firmly and stay seated — the wobble-free fit that prevents the intermittent bus errors loose adapters cause. The J1939 environment it serves includes truck diagnostic tools, code readers and industrial engine equipment; treat it as a consumable-grade cable at a tool-grade build.

Key features

• DB25 host side to J1939 vehicle side
• Pass-through pin design for unchanged signals
• Stable moulded sockets — no wobble, no intermittent contact
• For truck scanners, code readers and diagnostic tools

Specifications

An honest note on pin counts: the product line is listed as a 7-pin pass-through — J1939 devices vary in which pins carry the bus, so before ordering, confirm the pin count your interface and vehicle actually use. The original listing also refers to an 8-pin pass-through variant, which is exactly why the check matters. If your setup differs, message us and we will match you to the right variant.

Typical applications

• Bridging PC-based truck diagnostic interfaces to J1939 vehicles
• Workshop code readers on heavy equipment
• Industrial CAN bus tooling with DB25 host ports
